Installation Procedure

  1. Install the door handle to the door.

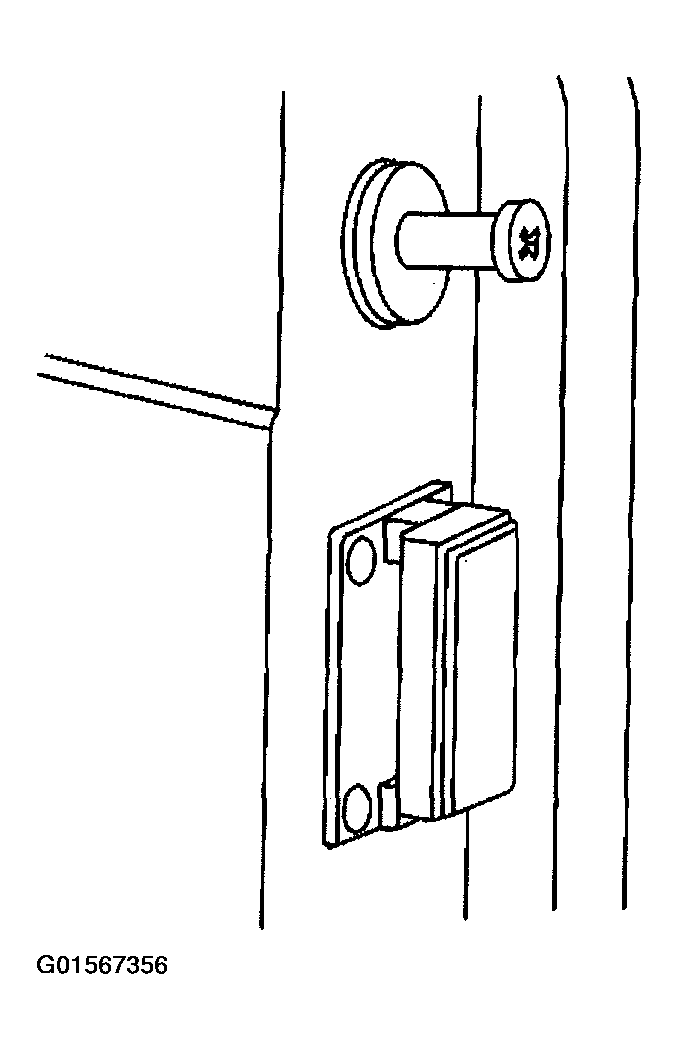

    Fig 1: Installing Door Handle
    G01567356Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the door handle nuts (2).

    Tighten

    Tighten the nuts to 11 N.m (97 lb in).

    Important:  Install new control rod retainers whenever they are removed.

  3. Install the control rod to the door handle (1).
  4. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT .
  5. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

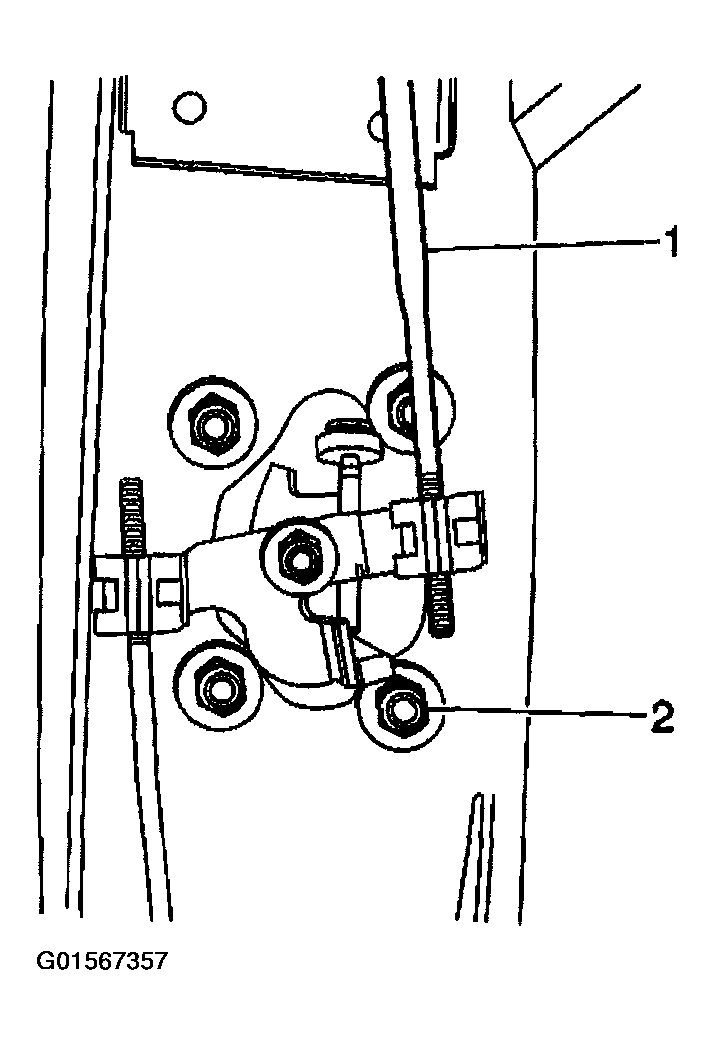

    Fig 2: Installing Door Handle Control Rod
    G01567357Courtesy of GENERAL MOTORS CORP.
