Removal Procedure

  1. Remove the screws that retain the liftgate handle.
  2. Remove the liftgate handle.

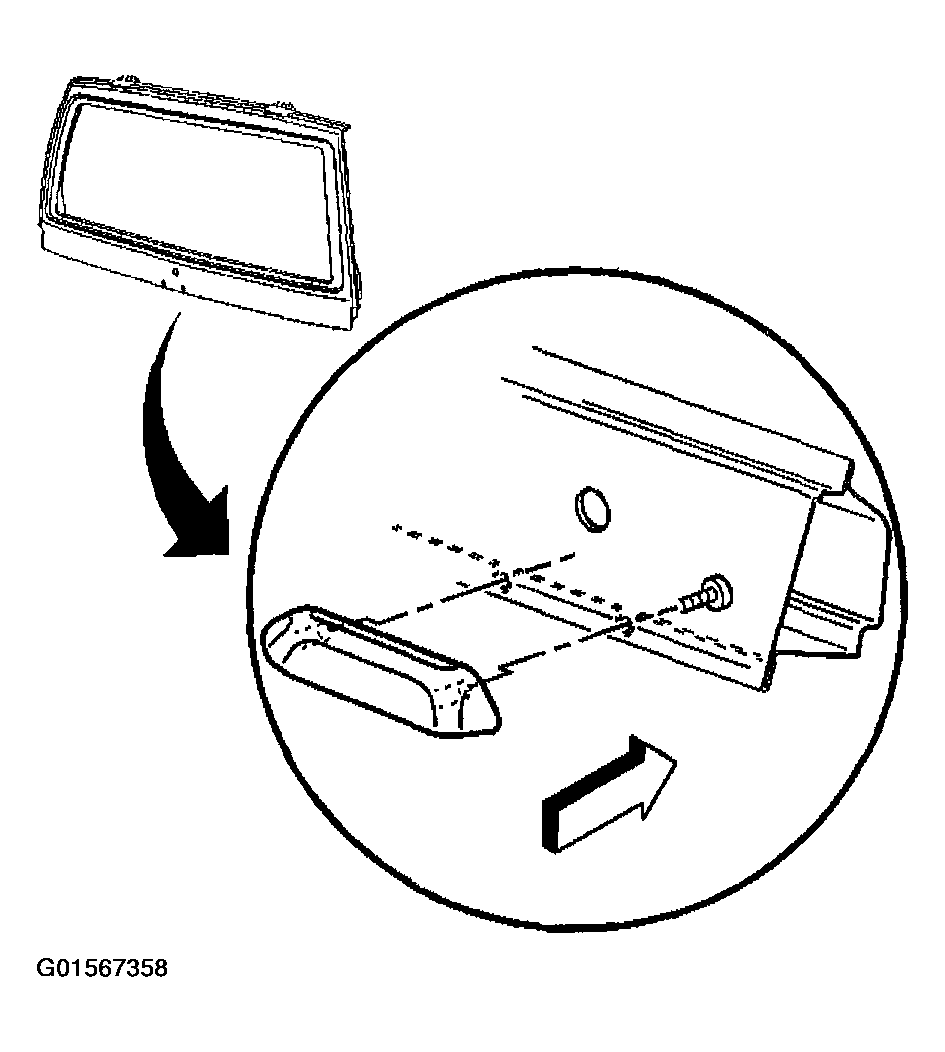

    Fig 1: Removing Liftgate Handle
    G01567358Courtesy of GENERAL MOTORS CORP.
