Installation Procedure

  1. Install the liftgate handle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the liftgate handle.

    Tighten

    Tighten the screws that retain the liftgate handle to 4 N.m (35 lb in).

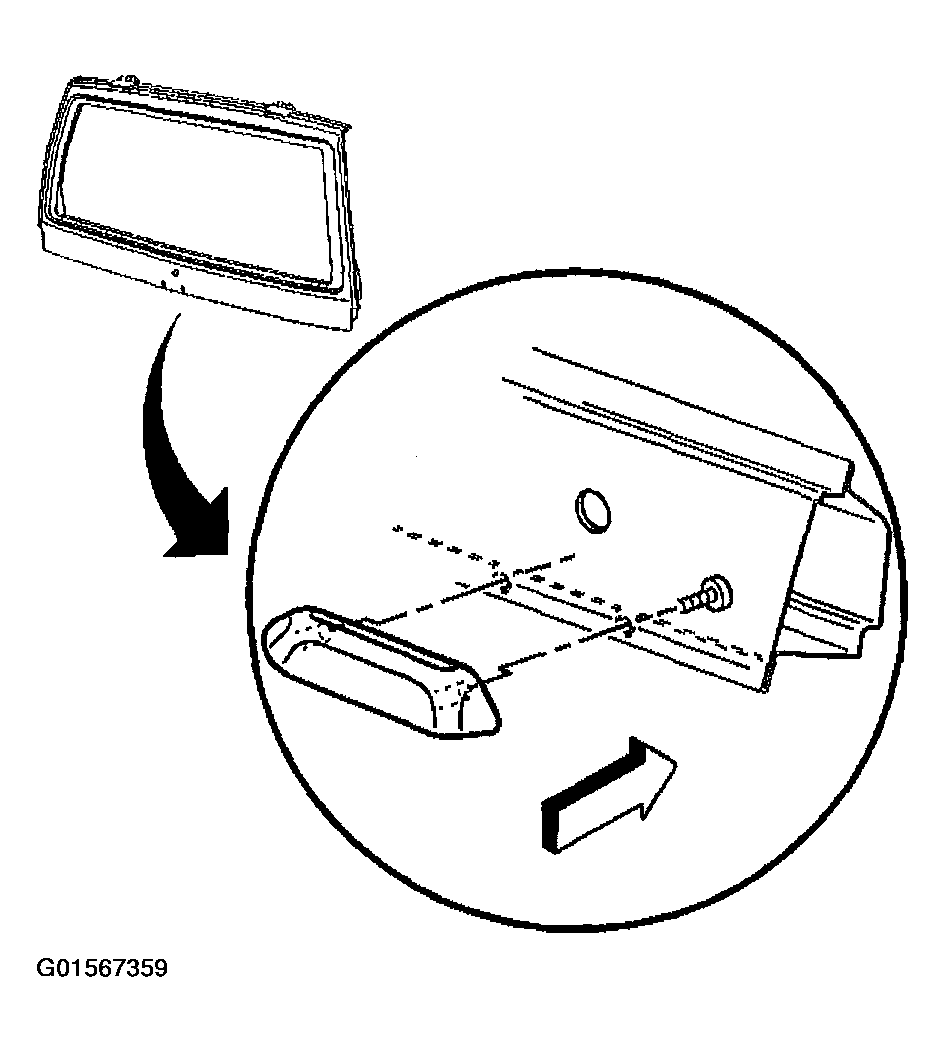

    Fig 1: Installing Liftgate Handle
    G01567359Courtesy of GENERAL MOTORS CORP.
