Removal Procedure

  1. Remove the interior handle screw cover (12).
  2. Remove the screws (11).
  3. Remove the handle (10) and the escutcheon (9).
  4. Remove the garnish molding screws (3).
  5. Remove the garnish molding (2).

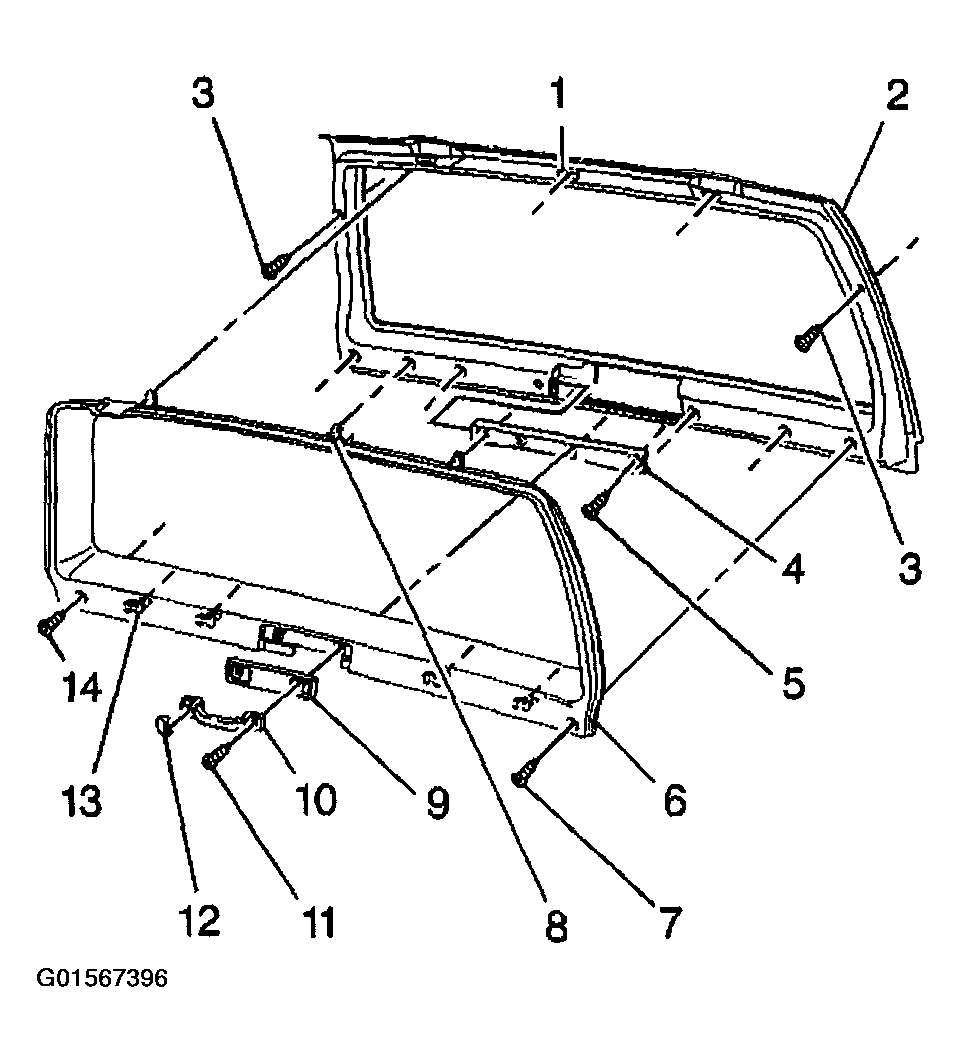

    Fig 1: Removing Lift Gate Garnish Molding
    G01567396Courtesy of GENERAL MOTORS CORP.
