Installation Procedure

  1. Install the garnish molding (2).

    Install the locator pins into the locator hole on the liftgate.

    NOTE: Refer to FASTENER NOTICE in Caution and Notices.
  2. Install the garnish molding screws (3).

    Tighten

    Tighten the garnish molding screws to 2 N.m (18 lb in).

  3. Install the handle escutcheon (9) and the handle (10).
  4. Install the interior handle.

    Tighten

    Tighten the interior handle screws to 6 N.m (53 lb in).

  5. Install the interior handle screw covers (12).

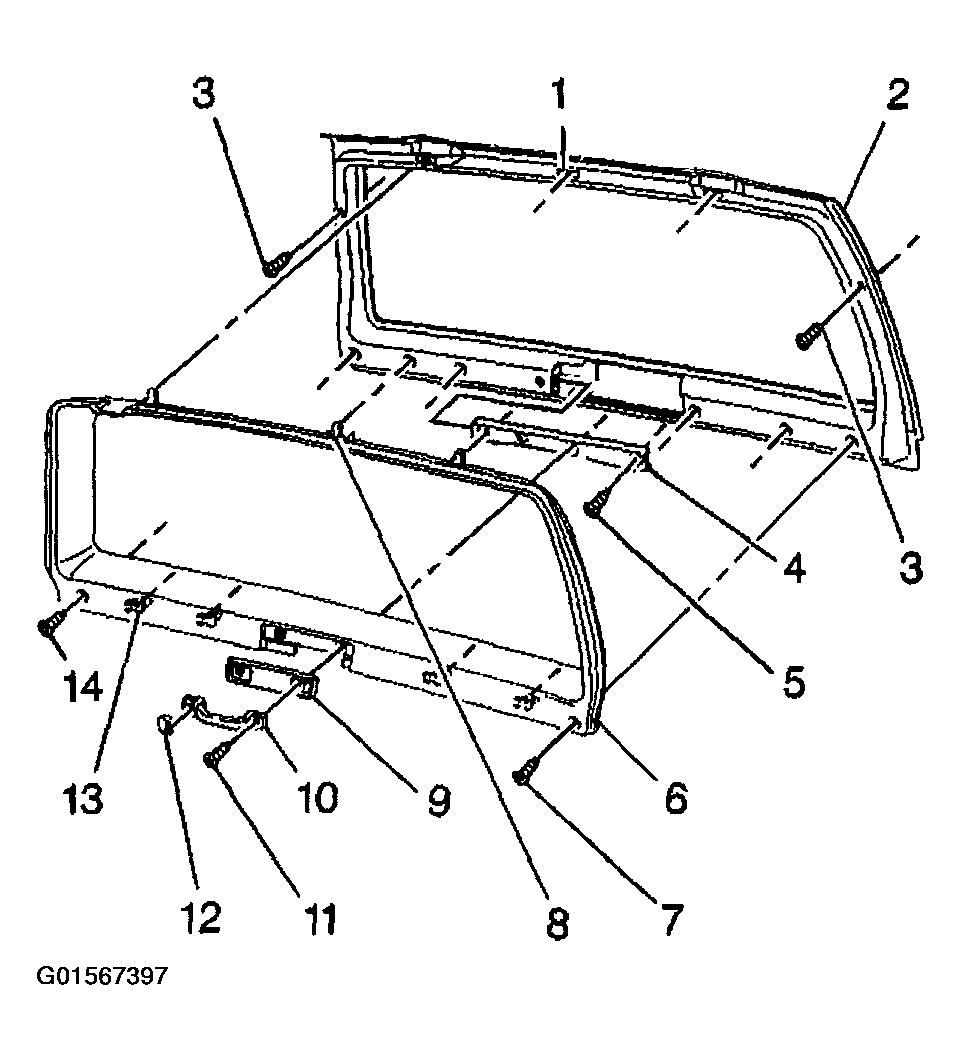

    Fig 1: Installing Lift Gate Garnish Molding
    G01567397Courtesy of GENERAL MOTORS CORP.
