Removal Procedure

  1. Remove the fuel filler door. Refer to FUEL FILLER DOOR REPLACEMENT .
  2. Remove the fuel filler cap.
  3. Remove the screws that retain the pocket to the fuel filler pipe.
  4. Remove the screws that retain the fuel filler pocket to the body.
  5. Remove the fuel filler pocket.

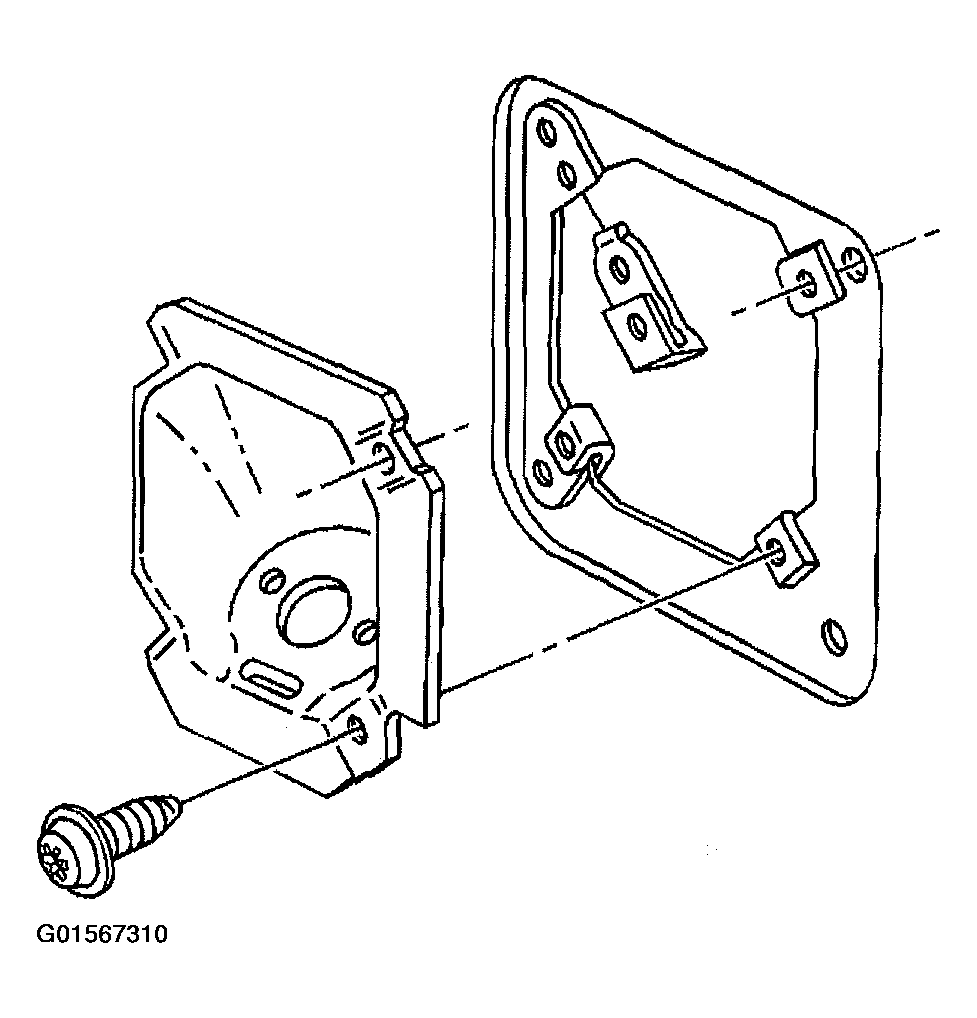

    Fig 1: Removing Screws From Fuel Filler Pocket
    G01567310Courtesy of GENERAL MOTORS CORP.
