Installation Procedure

  1. Install the fuel filler pocket.
  2. Install the screws that retain the fuel filler pocket to the body.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws that retain the pocket to the fuel filler pipe.

    Tighten

    Tighten the screws that retain the pocket to the fuel filler pipe to 2 N.m (18 lb in).

  4. Install the fuel filler cap.
  5. Install the fuel filler door. Refer to FUEL FILLER DOOR REPLACEMENT .

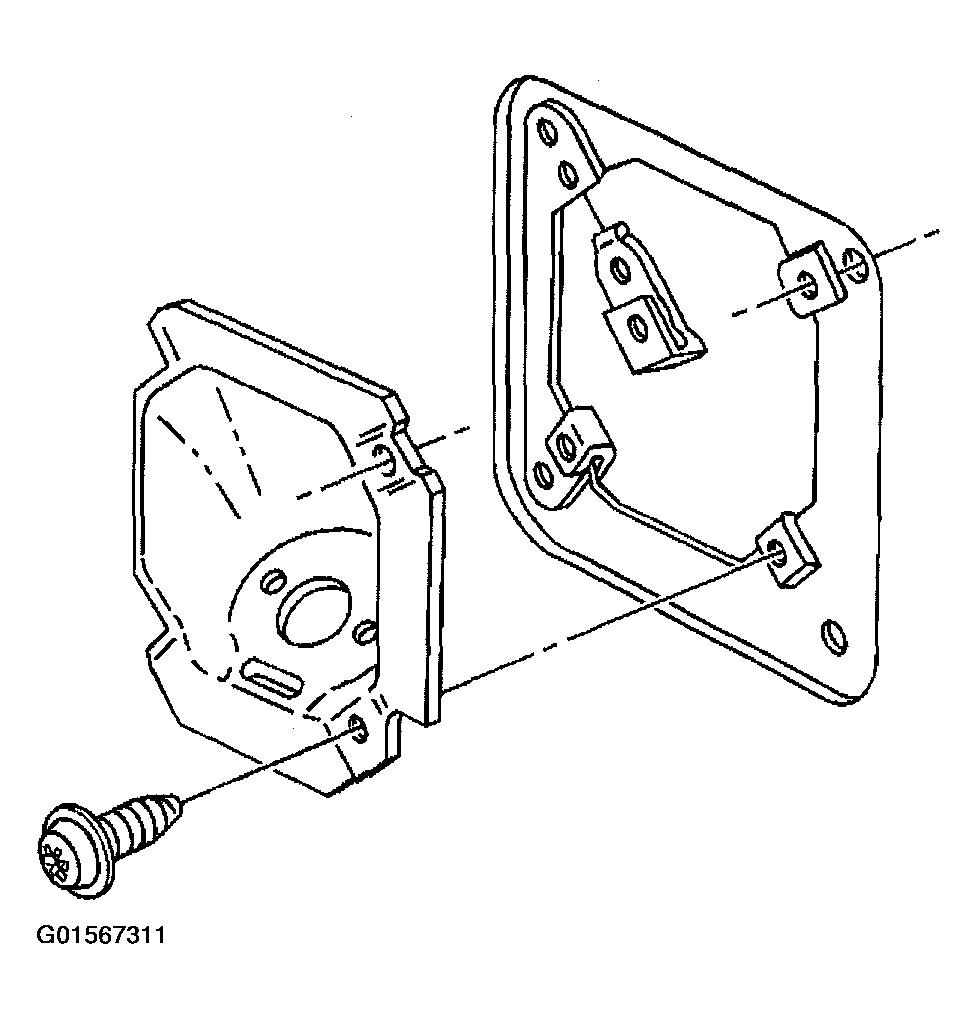

    Fig 1: Installing Fuel Filler Pocket Screws
    G01567311Courtesy of GENERAL MOTORS CORP.
