Installation Procedure

  1. Install the fuel filler door.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the fuel filler door.

    Tighten

    Tighten the screws that retain the fuel filler door to 2 N.m (18 lb in).

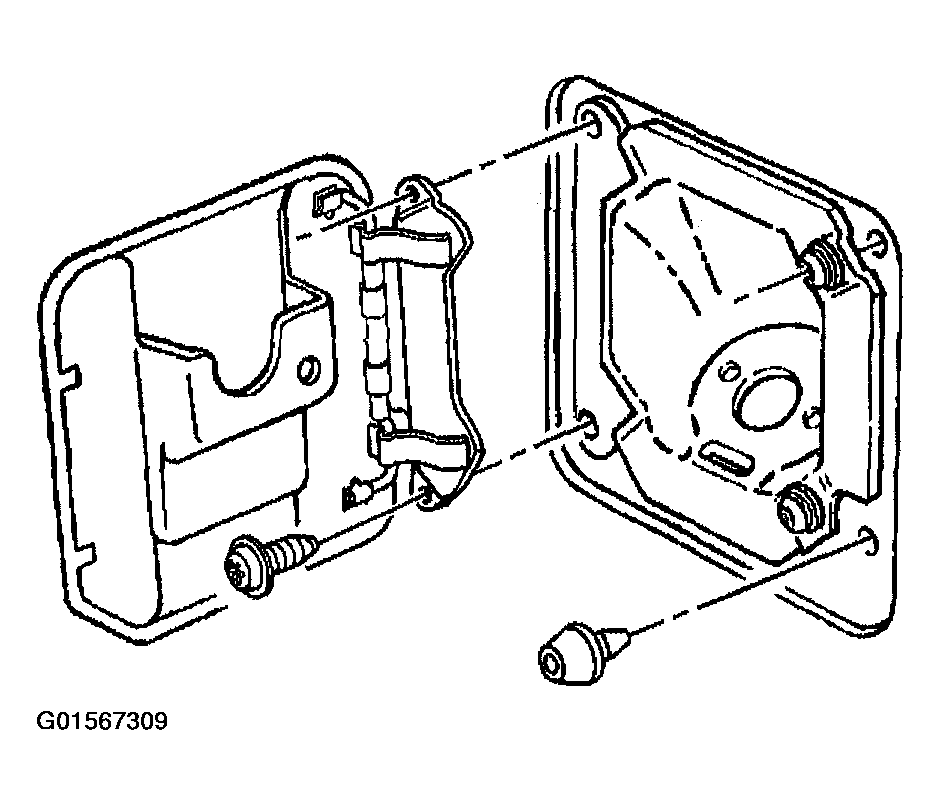

    Fig 1: Installing Fuel Filler Door Retainer Screws
    G01567309Courtesy of GENERAL MOTORS CORP.
