Removal Procedure

  1. Remove the rear door frame garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER in Interior Trim.
  2. Remove the nut that retains the locator to the door frame opening.
  3. Remove the locator from the vehicle.
  4. Remove the screws that retain the locator to the door.
  5. Remove the locator from the door.

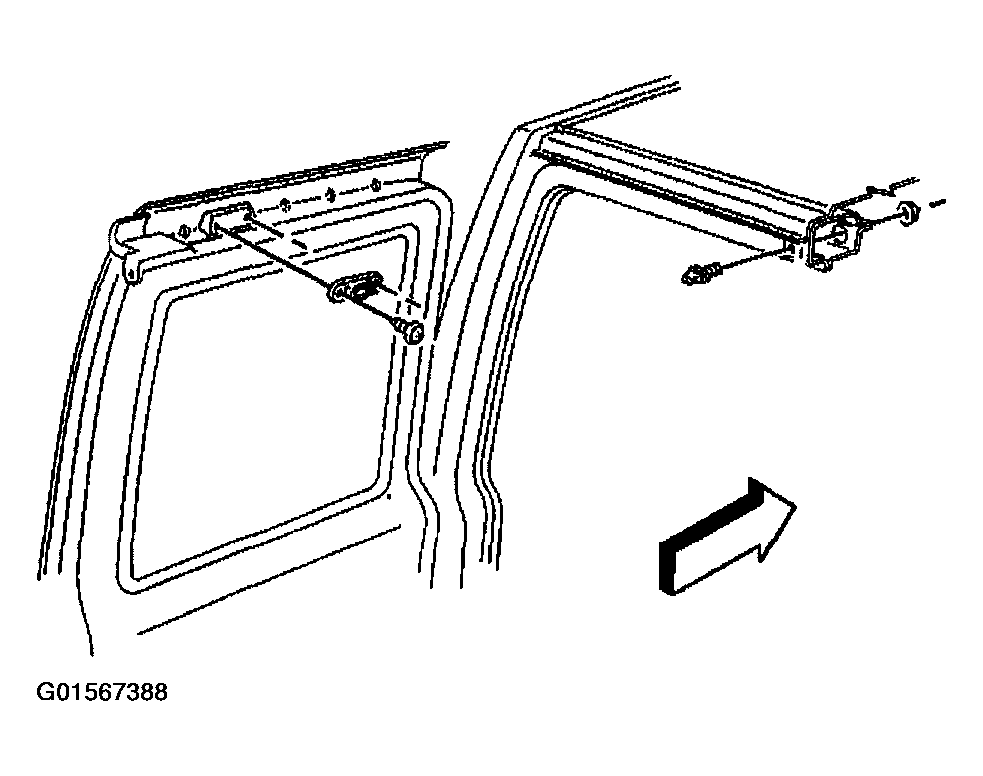

    Fig 1: Removing Upper Door Locator
    G01567388Courtesy of GENERAL MOTORS CORP.
