Installation Procedure

  1. Install the check link (5) to the door.
  2. Install the check link boot to the door (6).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the check link boot bolts to the door.

    Tighten

    Tighten the check link bolts to the door to 6 N.m (53 lb in).

  4. Install the check link bracket (1) and the check link lock spring.
  5. Install the check link bracket screws (2).

    Tighten

    Tighten the check link bracket screws to 4 N.m (35 lb in).

  6. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT .
  7. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

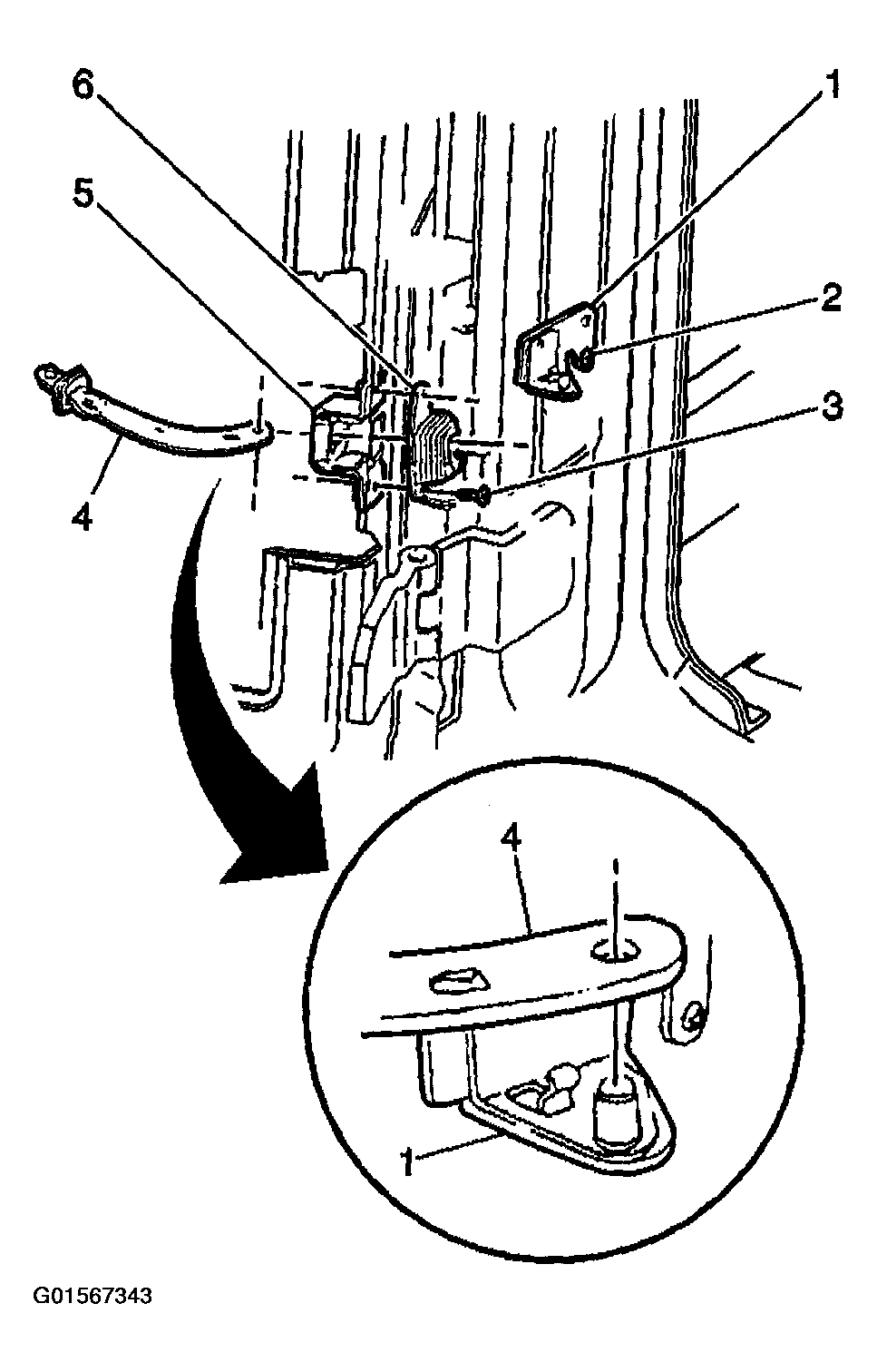

    Fig 1: Installing Rear Door Check Link (E54)
    G01567343Courtesy of GENERAL MOTORS CORP.
