Rear Window Release Inoperative

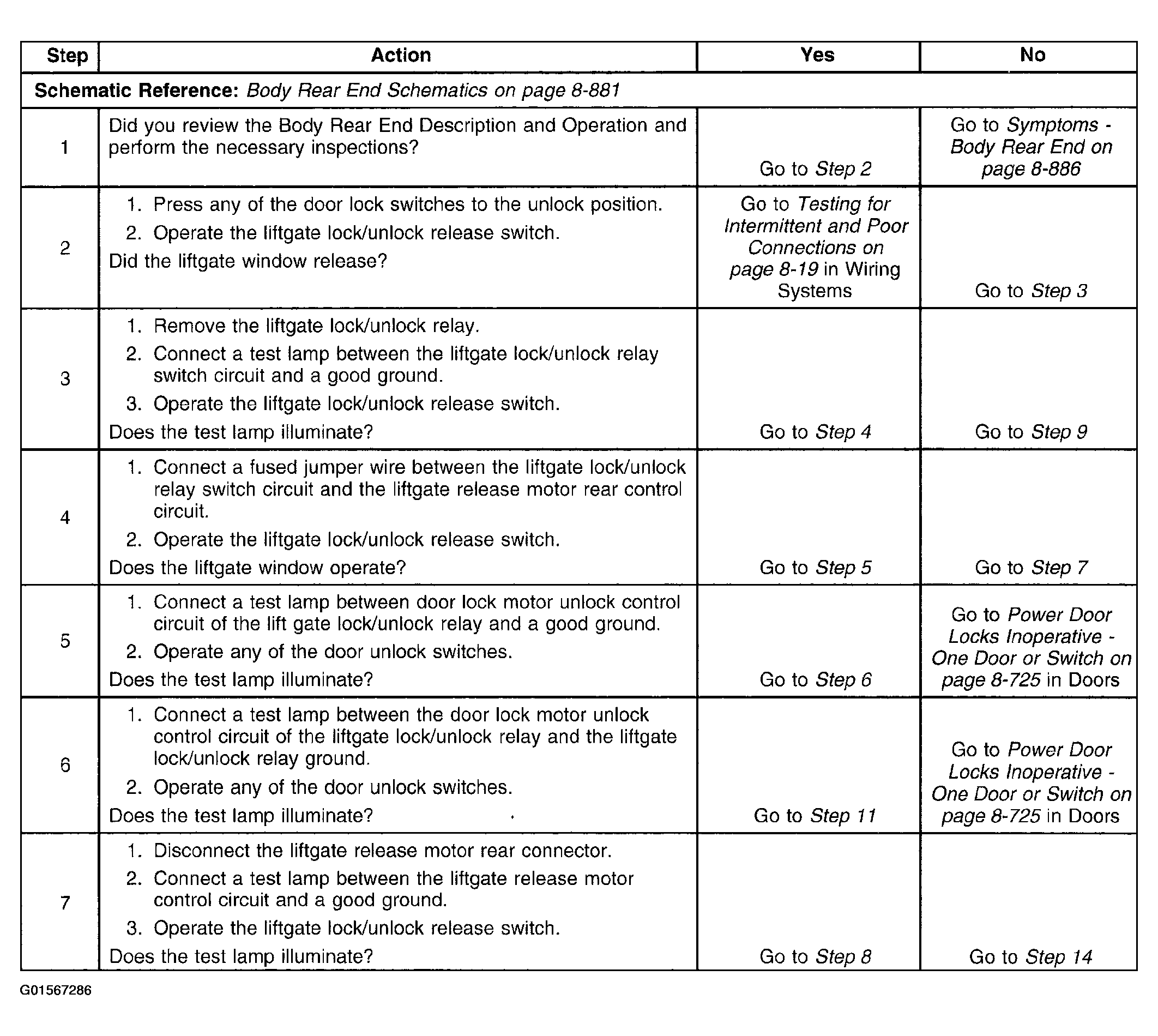

Fig 1: Rear Window Release Inoperative (1 Of 2)
G01567286Courtesy of GENERAL MOTORS CORP.

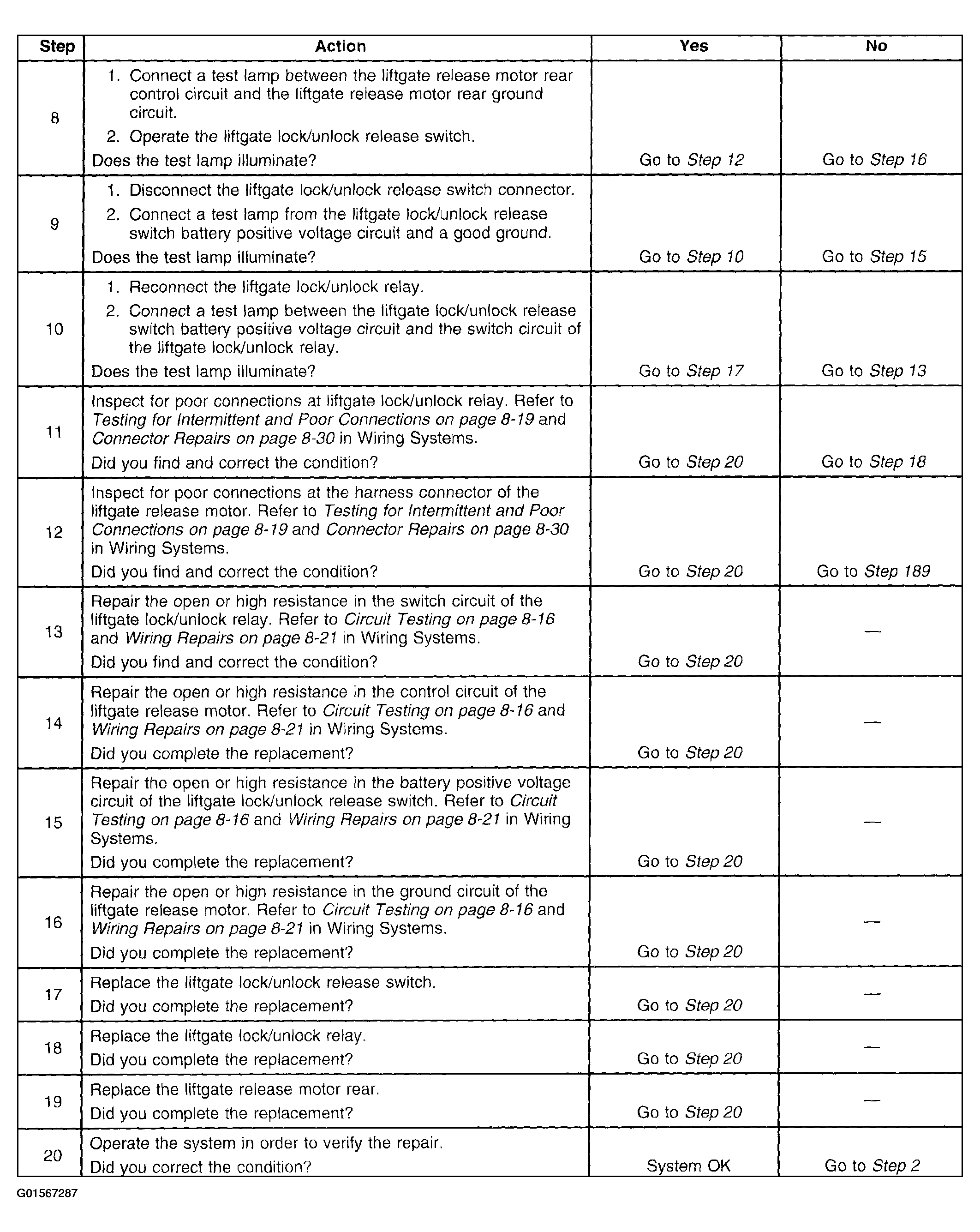

Fig 2: Rear Window Release Inoperative (2 Of 2)
G01567287Courtesy of GENERAL MOTORS CORP.
