Body Rear End Connector End Views

Fig 1: Liftglass Release Actuator Connector
G01567283Courtesy of GENERAL MOTORS CORP.

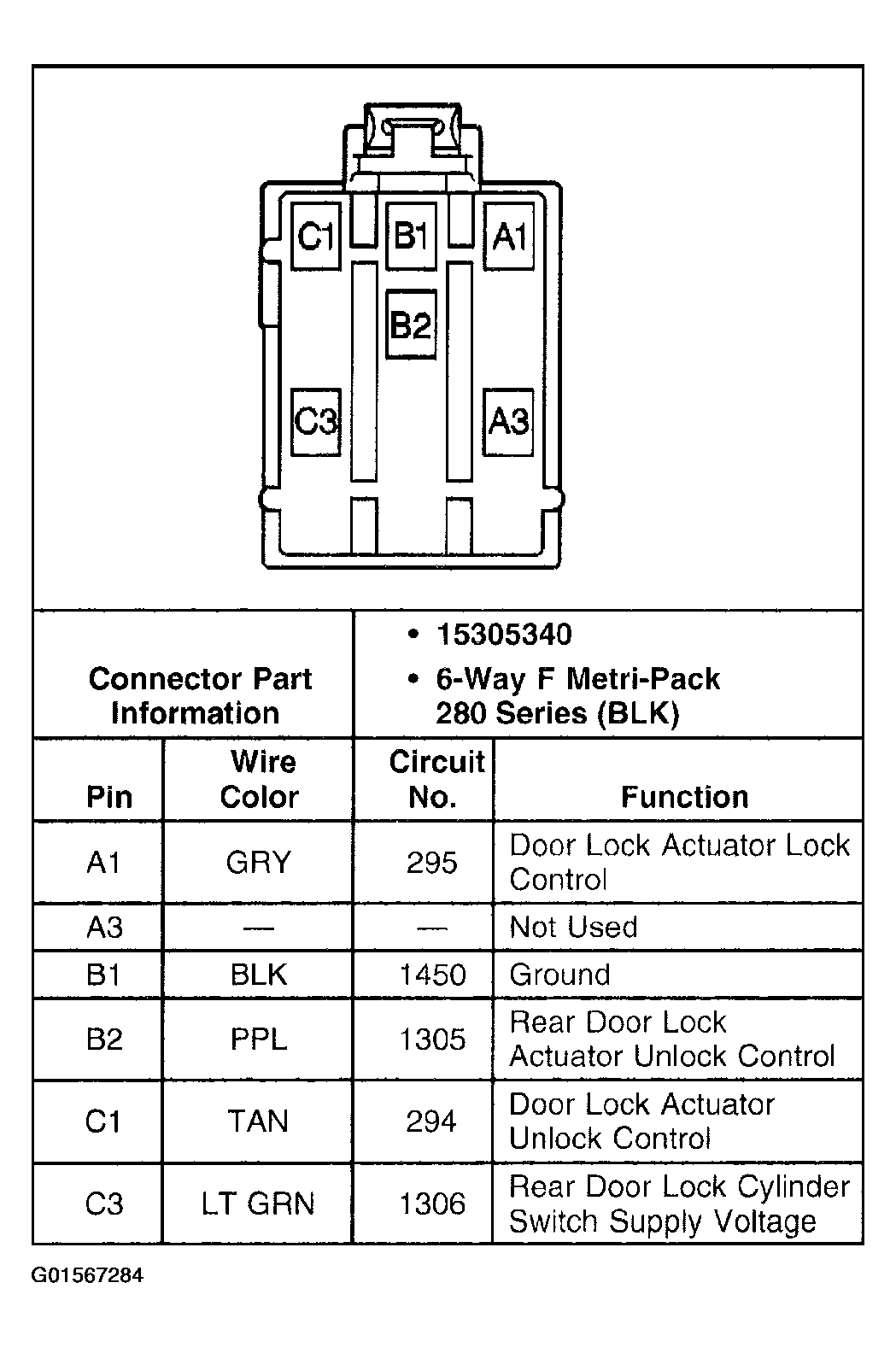

Fig 2: Liftglass Lock/Unlock Relay Connector
G01567284Courtesy of GENERAL MOTORS CORP.

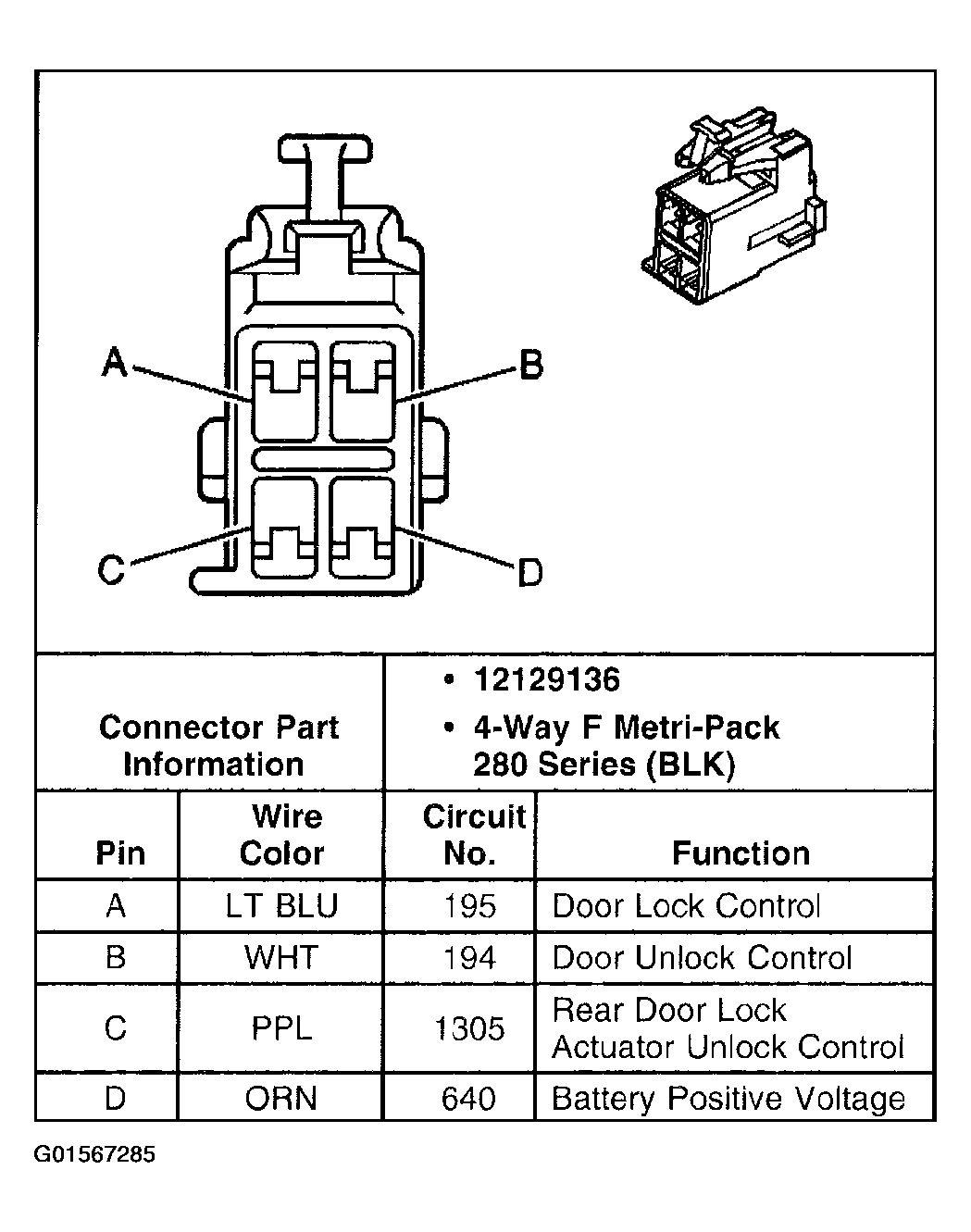

Fig 3: Liftglass Lock/Unlock Release Switch Connector
G01567285Courtesy of GENERAL MOTORS CORP.
