Body Rear End Component Views

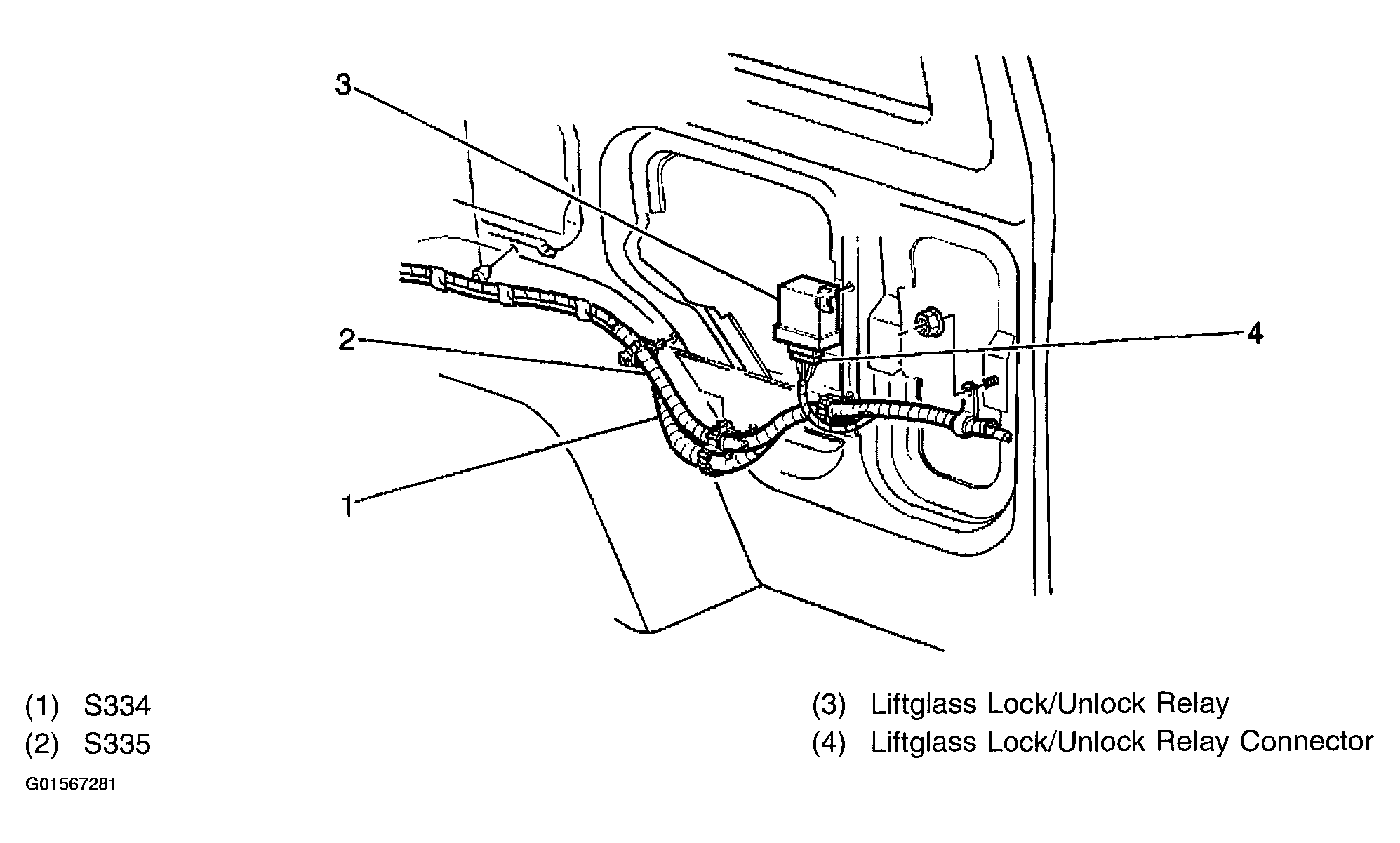

Fig 1: Body Wiring - RR
G01567281Courtesy of GENERAL MOTORS CORP.

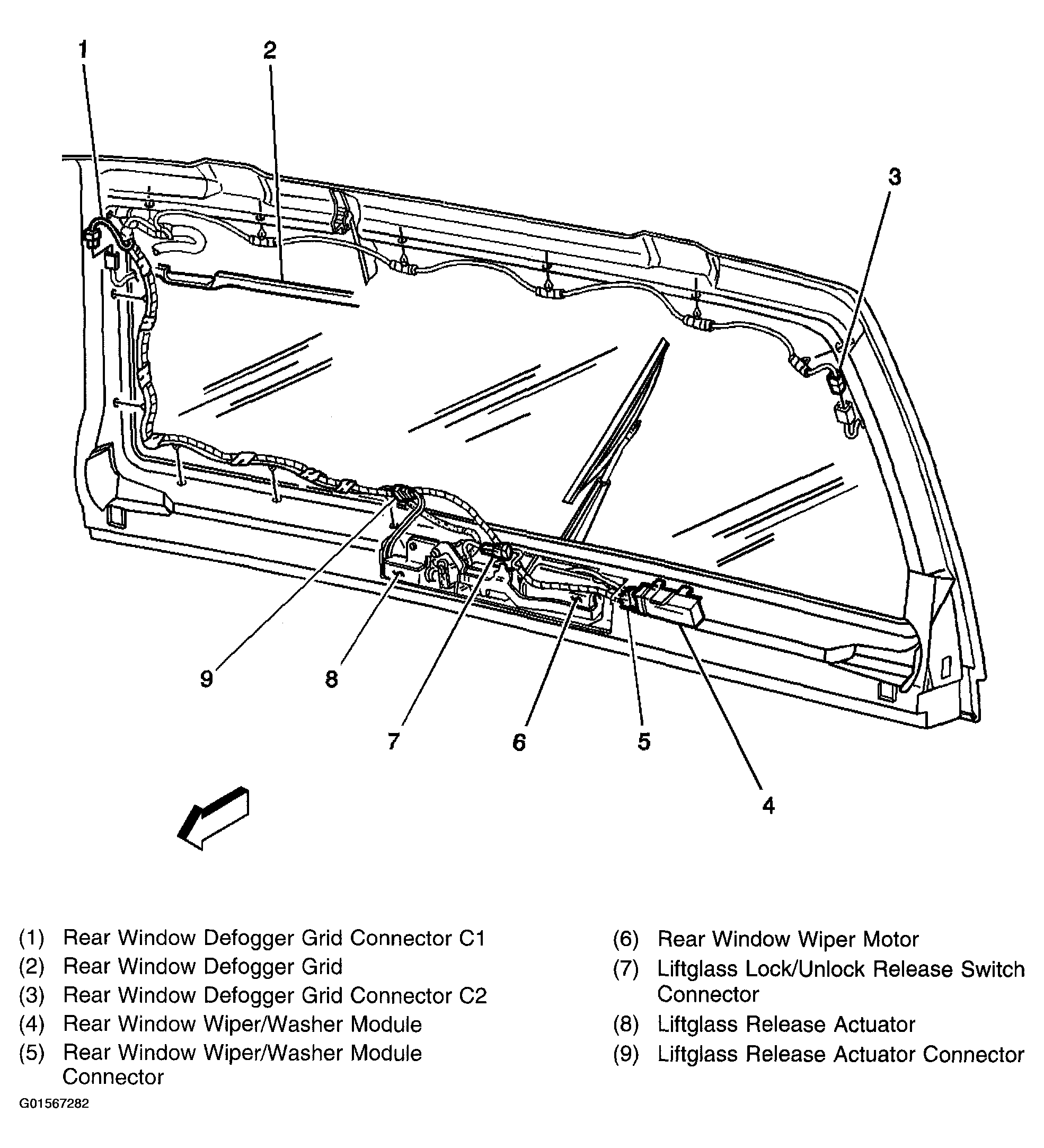

Fig 2: Liftgate Harness View
G01567282Courtesy of GENERAL MOTORS CORP.
