Removal Procedure

  1. Use J 38778  in order to remove the retainers from the fender and the extension and from the wheelhouse.
  2. Remove the extension from the wheelhouse.

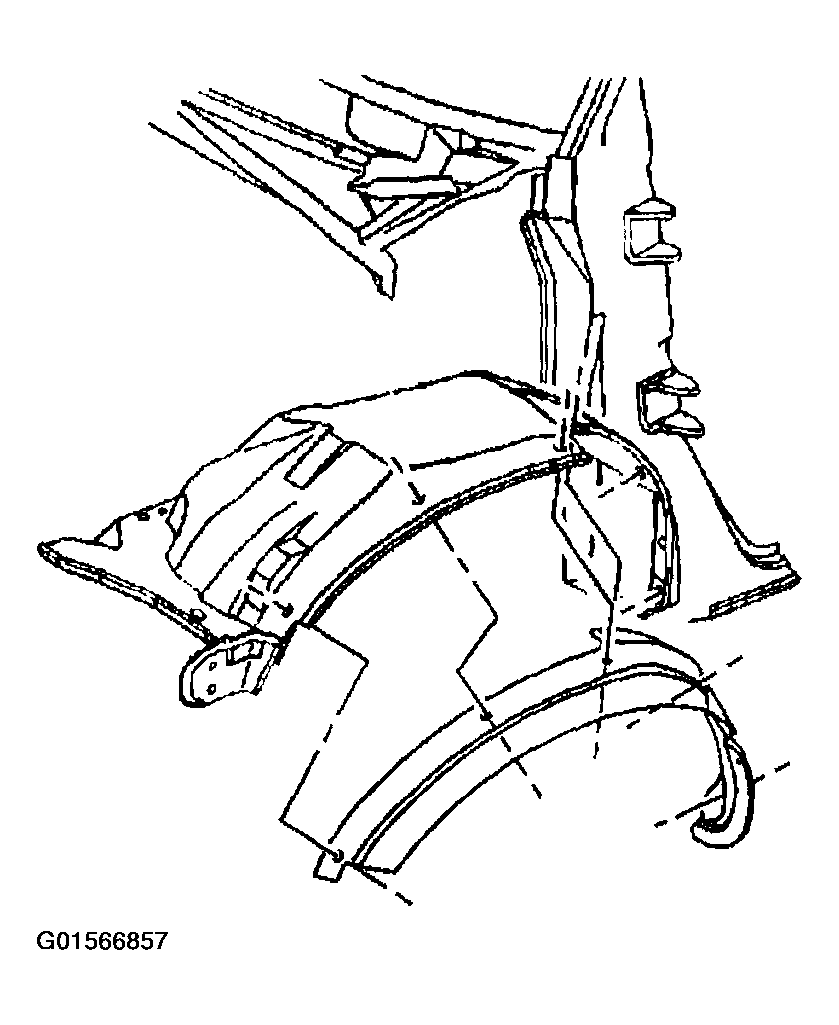

    Fig 1: Removing Extension From The Wheelhouse
    G01566857Courtesy of GENERAL MOTORS CORP.
