Removal Procedure

  1. Remove the grille. Refer to GRILLE REPLACEMENT in Exterior Trim.
  2. Remove the outside air temperature sensor and wiring, if equipped.
  3. Remove the center support bracket bolts.
  4. Remove the support bracket from the vehicle.

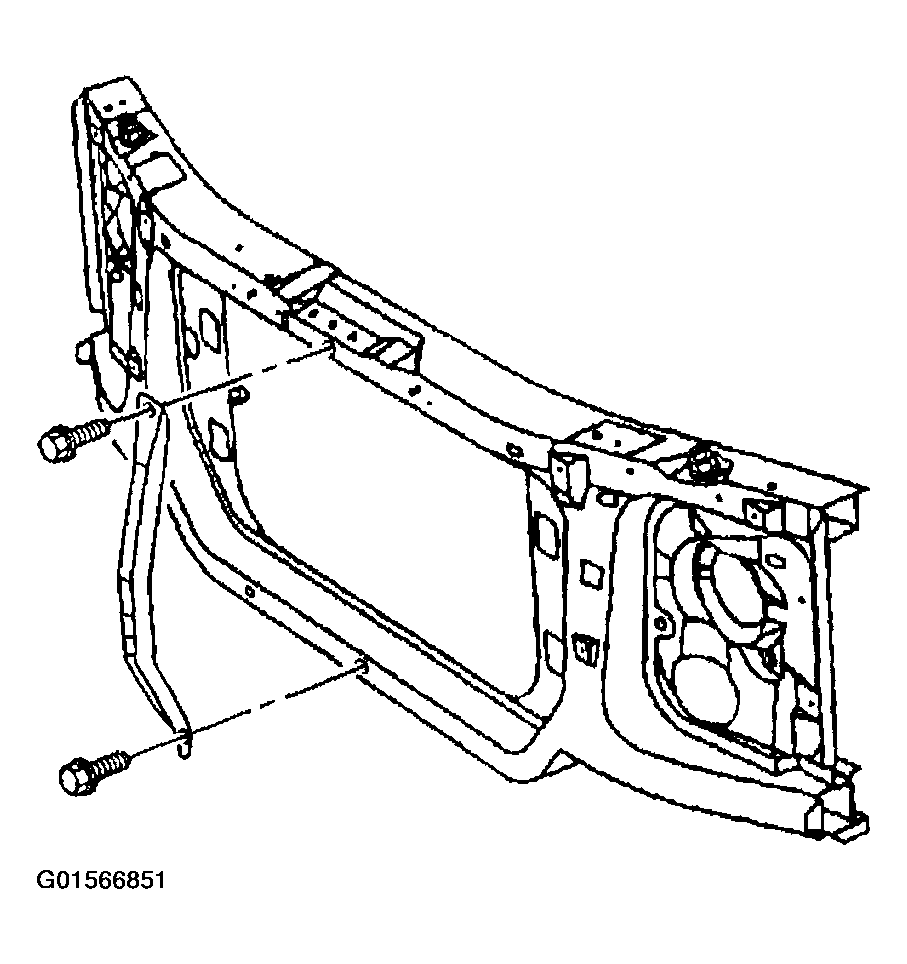

    Fig 1: Removing Center Support Bracket From Vehicle
    G01566851Courtesy of GENERAL MOTORS CORP.
