Installation Procedure

  1. Install the center support bracket to the vehicle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the support bracket bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the outside air temperature sensor and wiring, if equipped.
  4. Install the grille. Refer to GRILLE REPLACEMENT in Exterior Trim.

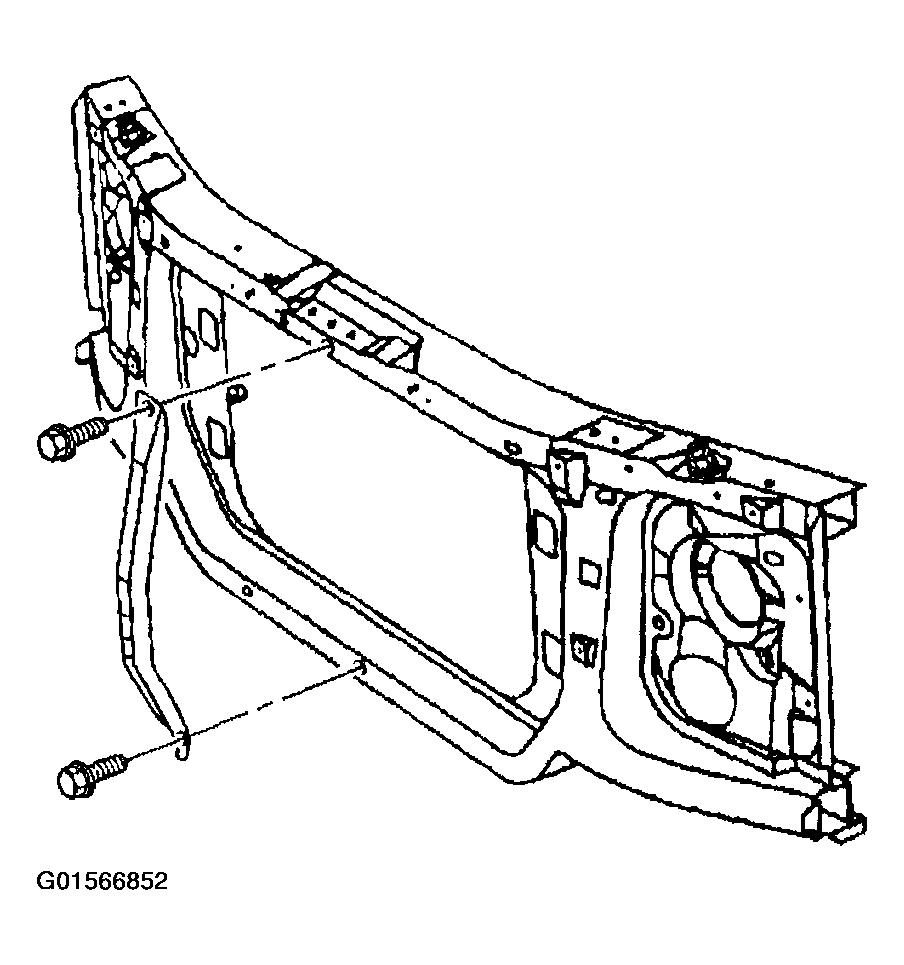

    Fig 1: Installing Center Support Bracket To Vehicle
    G01566852Courtesy of GENERAL MOTORS CORP.
