Removal Procedure

  1. Use J 38778  to remove the retainers from the wheelhouse and the splash shield.
  2. Remove the wheelhouse splash shield from the wheelhouse.

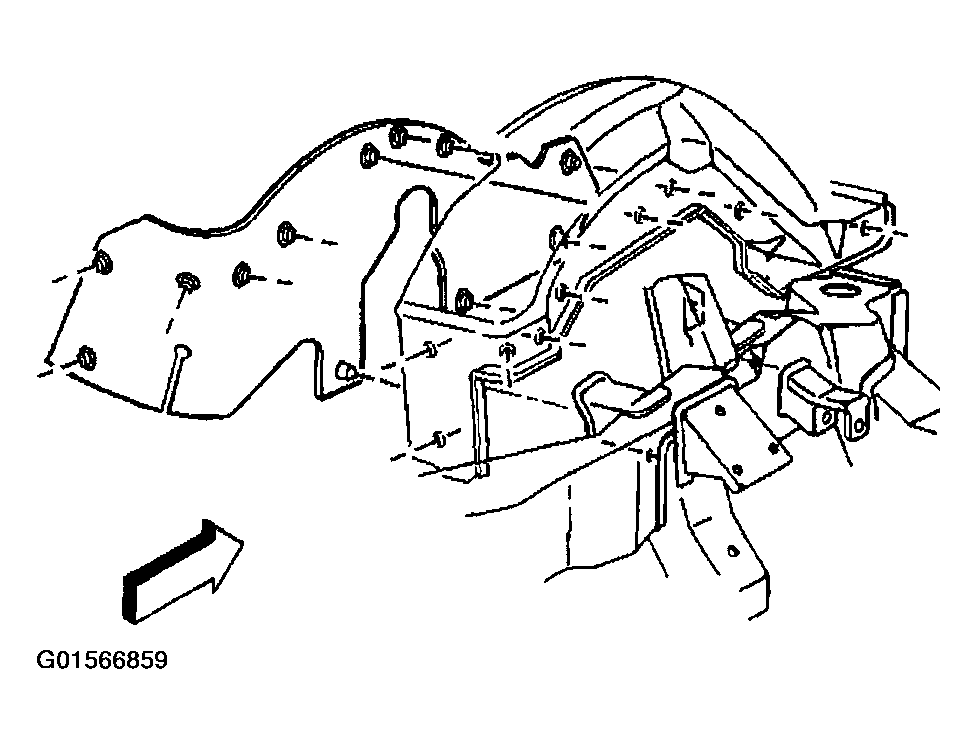

    Fig 1: Removing Wheelhouse Splash Shield From The Wheelhouse
    G01566859Courtesy of GENERAL MOTORS CORP.
