Installation Procedure

  1. Install the wheelhouse splash shield to the wheelhouse.
  2. Push the retainers into the wheelhouse holes in order to retain the splash shield to the wheelhouse.

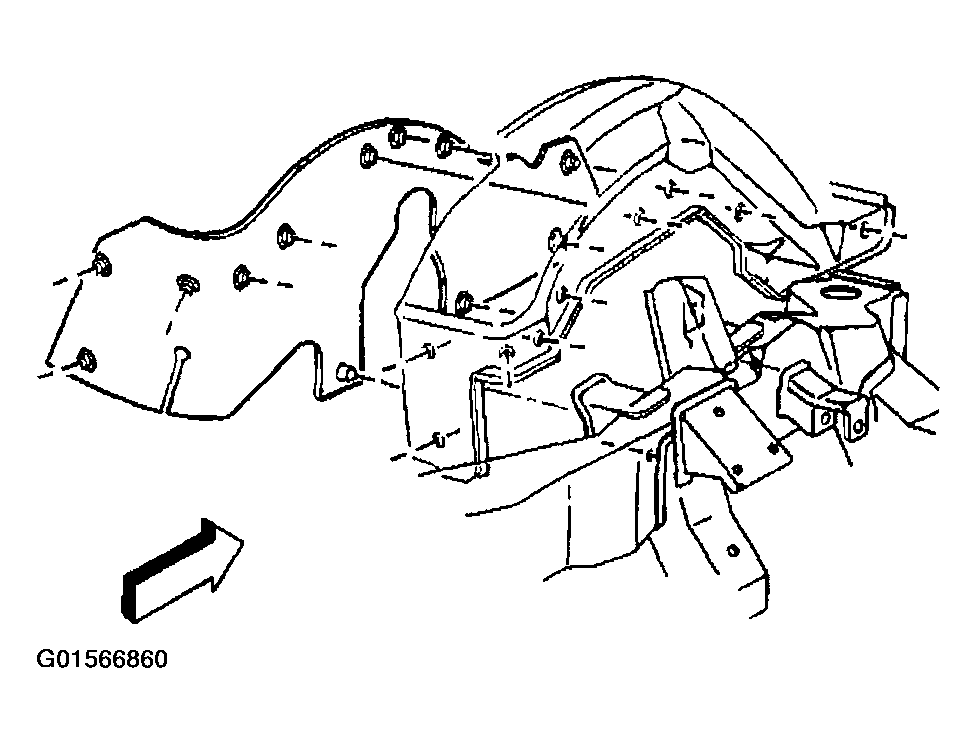

    Fig 1: Installing Wheelhouse Splash Shield To The Wheelhouse
    G01566860Courtesy of GENERAL MOTORS CORP.
