Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Body Front End >> Repair Instructions >> Seal Replacement - Hood Rear >> Removal Procedure

Removal Procedure

  1. Remove the rear hood seal retainers by using J 38778.
  2. Remove the rear hood seal from the hood.

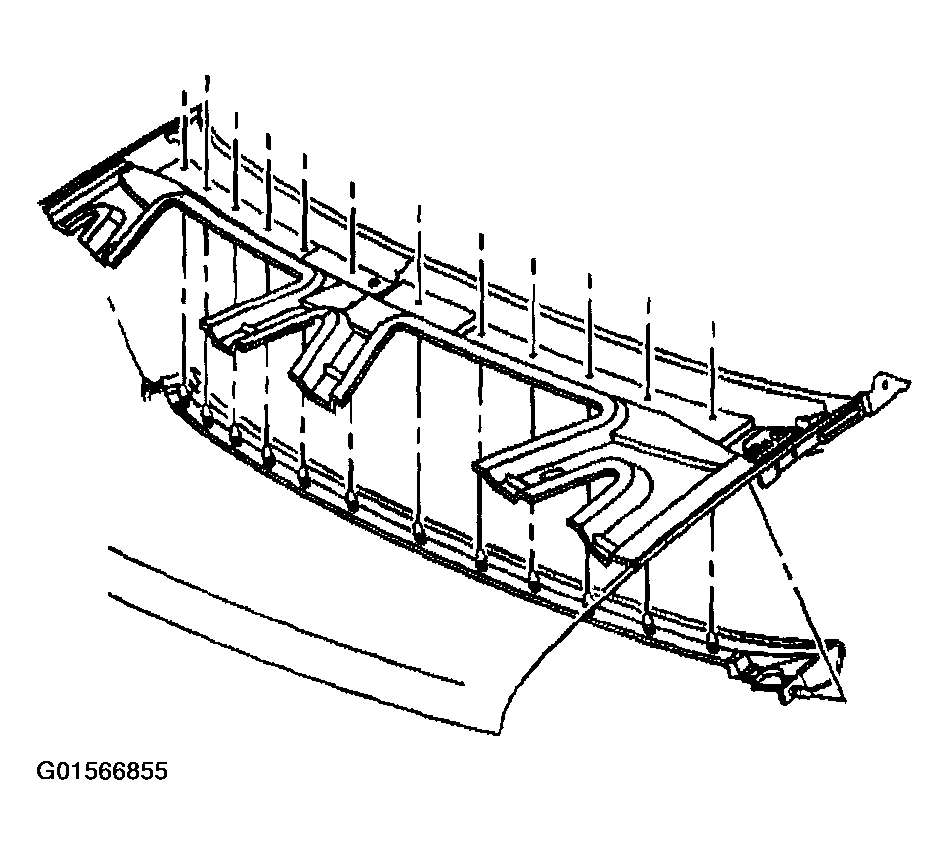

    Fig 1: Removing Rear Hood Seal From Hood
    G01566855Courtesy of GENERAL MOTORS CORP.
