Installation Procedure

  1. With an assistant, install the hood to the vehicle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the hood to hinge bolts.

    Tighten

    Tighten the hood to hinge bolt to 25 N.m (18 lb ft).

  3. Lower the hood.

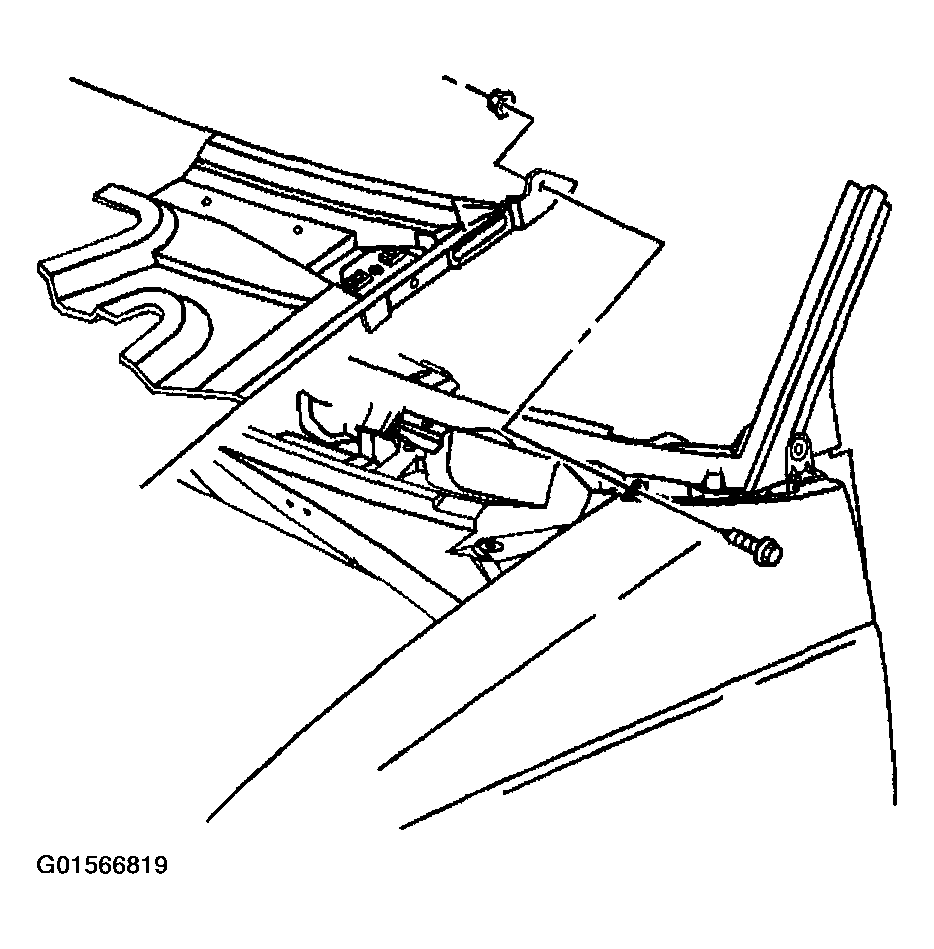

    Fig 1: Installing Hinge Bolts
    G01566819Courtesy of GENERAL MOTORS CORP.
