Removal Procedure

  1. Remove the hood latch bolt.
  2. Remove the secondary hood latch from the hood.

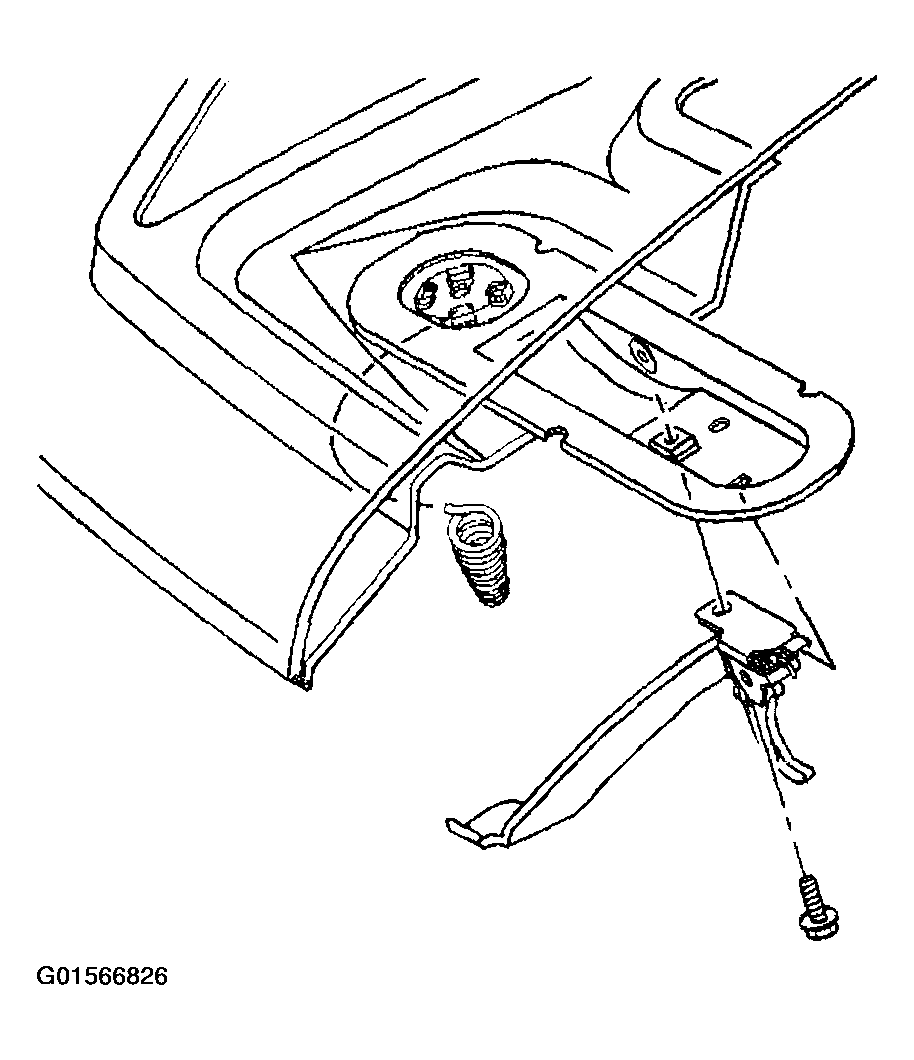

    Fig 1: Removing Secondary Hood Latch
    G01566826Courtesy of GENERAL MOTORS CORP.
