Installation Procedure

  1. Install the secondary hood latch to the hood. Position the tab into the slot.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the hood latch bolt

    Tighten

    Tighten the hood latch bolt to 27 N.m (20 lb ft).

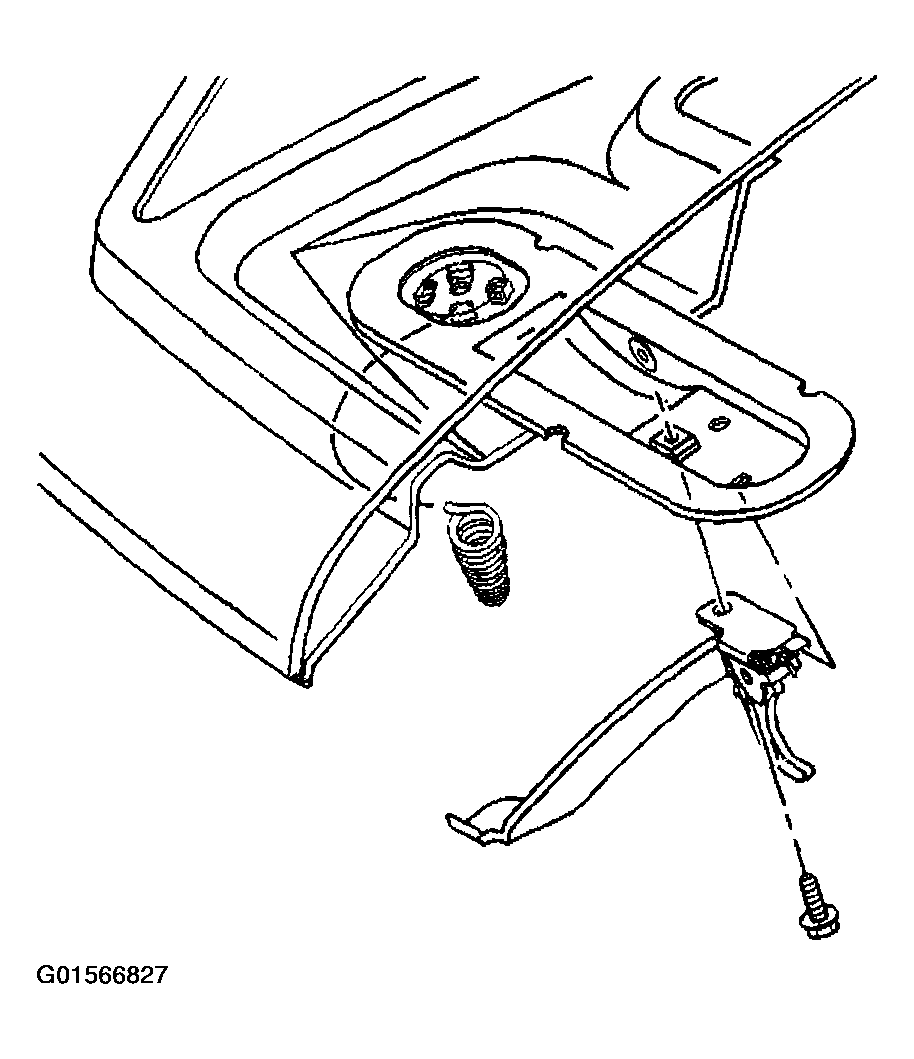

    Fig 1: Installing Secondary Hood Latch
    G01566827Courtesy of GENERAL MOTORS CORP.
