Installation Procedure

  1. Install the bracket to the latch.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the primary latch to the bracket bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the primary latch and bracket to the vehicle.

    Important:  In the next step, do not tighten the bolts.

  4. Install the primary latch support bolts to the radiator.
  5. Adjust the latch right and left until the latch lines up with the striker pins in the hood.
  6. Raise the hood and tighten the latch to the radiator support bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  7. Use a suitable tool in order to crimp the cable clip and retain the hood release cable to the latch.
  8. Verify that the hood is operating correctly.

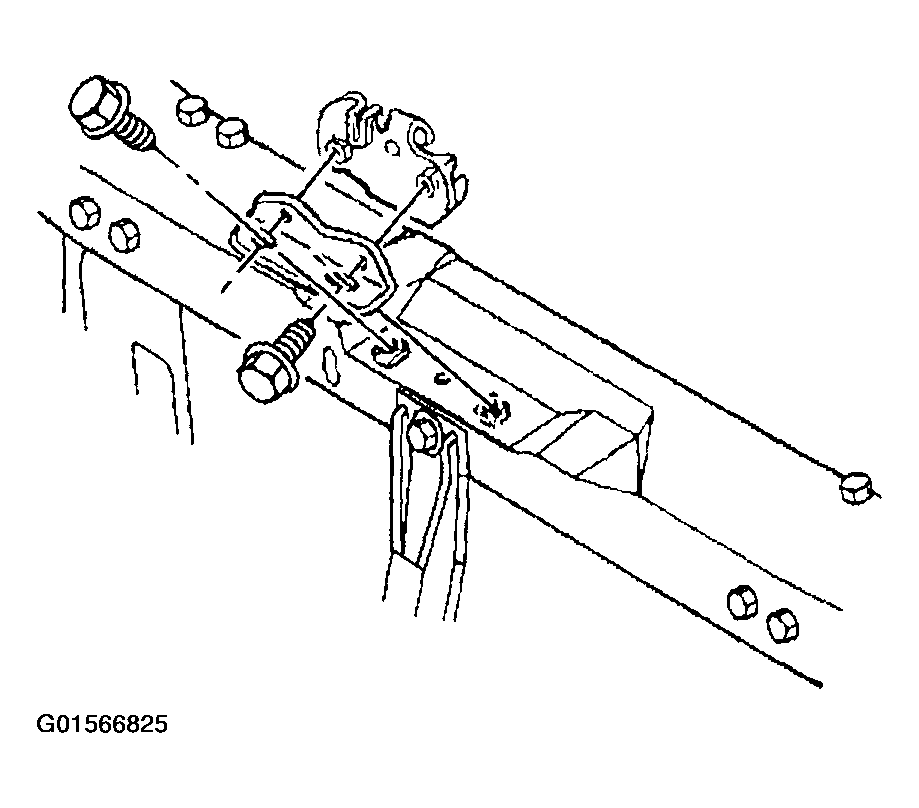

    Fig 1: Installing Primary Hood Latch
    G01566825Courtesy of GENERAL MOTORS CORP.
