Removal Procedure

  1. Remove the left cowl side trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE in Interior Trim.
  2. Remove the screws that retain the hood release lever to the cowl side trim panel.
    Fig 1: Removing Screws That Retain Hood Release Lever To Cowl Side Trim Panel
    G01566835Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood release cable from the hood latch. Refer to HOOD LATCH RELEASE CABLE REPLACEMENT .

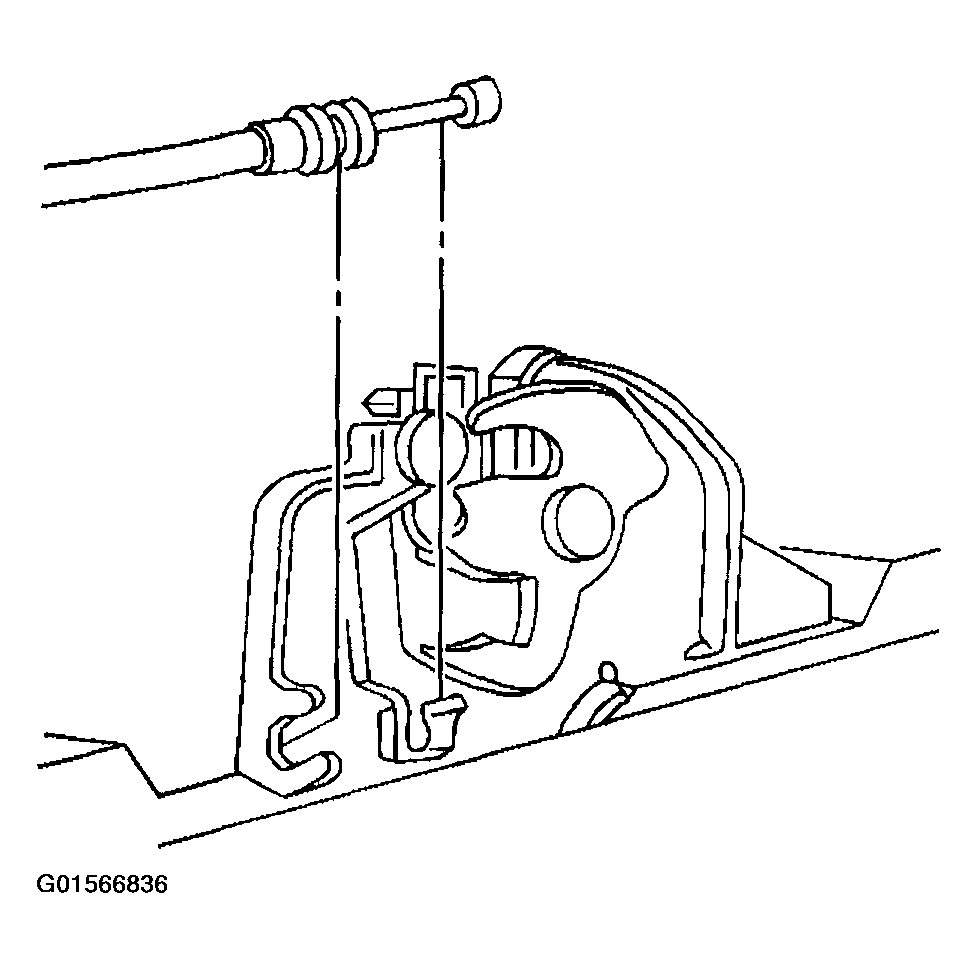

    Fig 2: Removing Hood Release Cable From Hood Latch
    G01566836Courtesy of GENERAL MOTORS CORP.
