Installation Procedure

  1. Install the hood release cable to the hood latch. Refer to HOOD LATCH RELEASE CABLE REPLACEMENT .

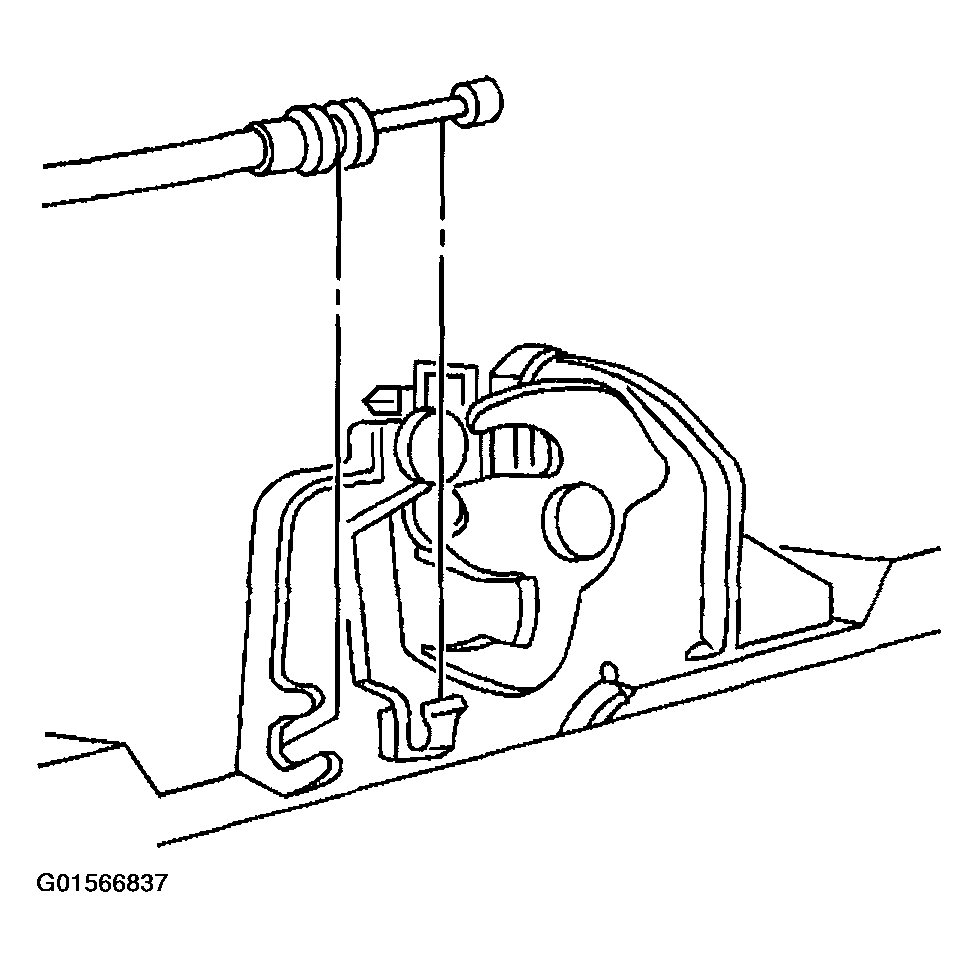

    Fig 1: Installing Hood Release Cable To Hood Latch
    G01566837Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screws that retain the hood release lever to the cowl side trim panel.

    Tighten

    Tighten the hood release lever screws to 8 N.m (71 lb in).

  3. Install the left cowl side trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE in Interior Trim.
    Fig 2: Installing Screws That Retain Hood Release Lever To Cowl Side Trim Panel
    G01566838Courtesy of GENERAL MOTORS CORP.
