Installation Procedure

  1. Route the cable through the front of the cowl.

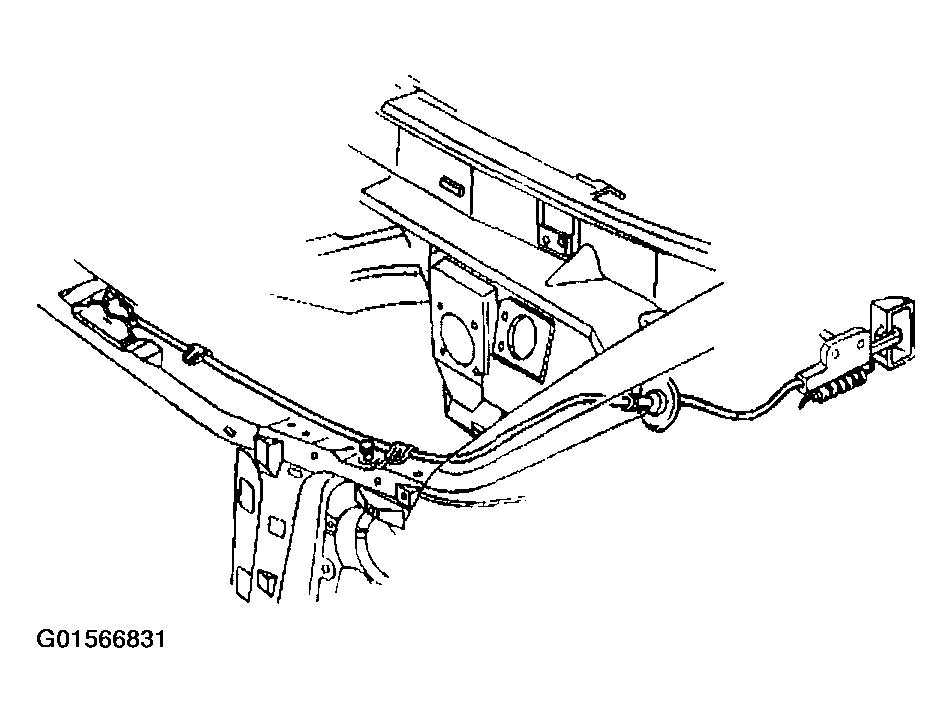

    Fig 1: Hood Latch Release Cable Routing
    G01566831Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the screws that retain the cable to cowl side panel.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the left cowl side trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE .
    Fig 2: Installing Screws That Retain Cable Assembly To Cowl Side Panel
    G01566832Courtesy of GENERAL MOTORS CORP.
  4. Pull the cable assembly from the front of the cowl until the grommet is seated.
  5. Connect the cable to the fasteners in the radiator support.

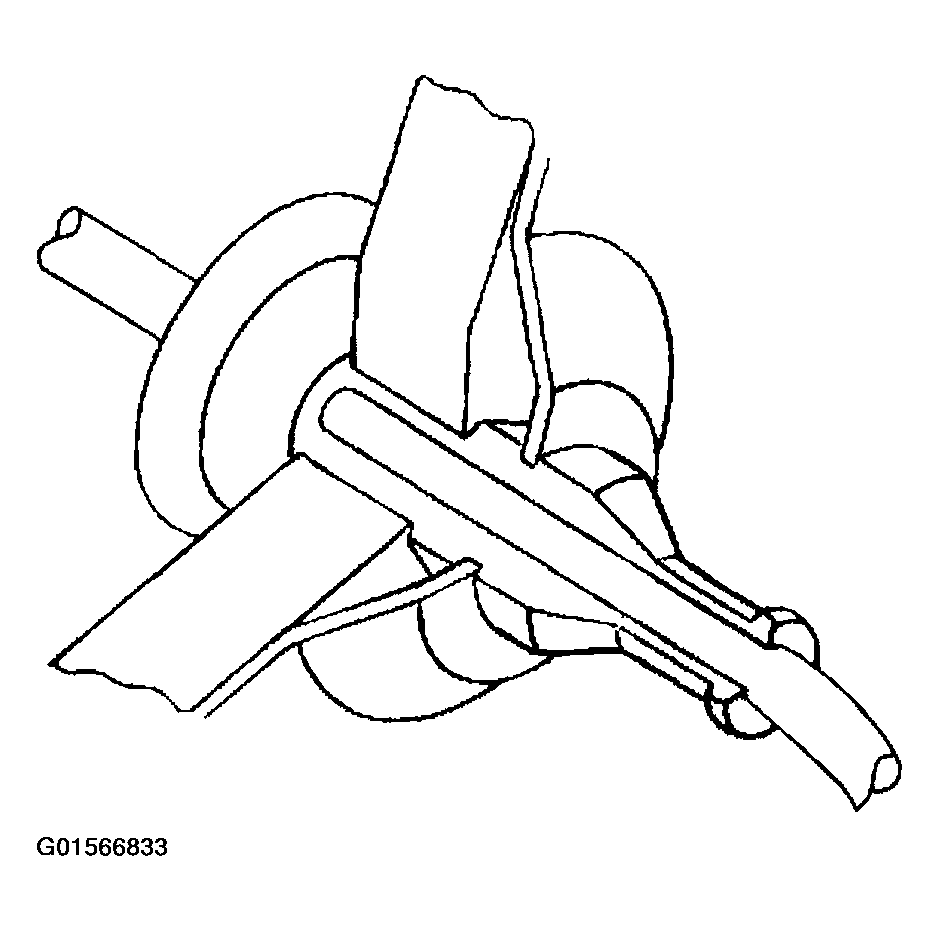

    Fig 3: Identifying Cowl Grommet
    G01566833Courtesy of GENERAL MOTORS CORP.
  6. Use a suitable tool in order to clamp the cable clip and connect the cable to the primary latch.
  7. Verify that the hood is operating correctly.

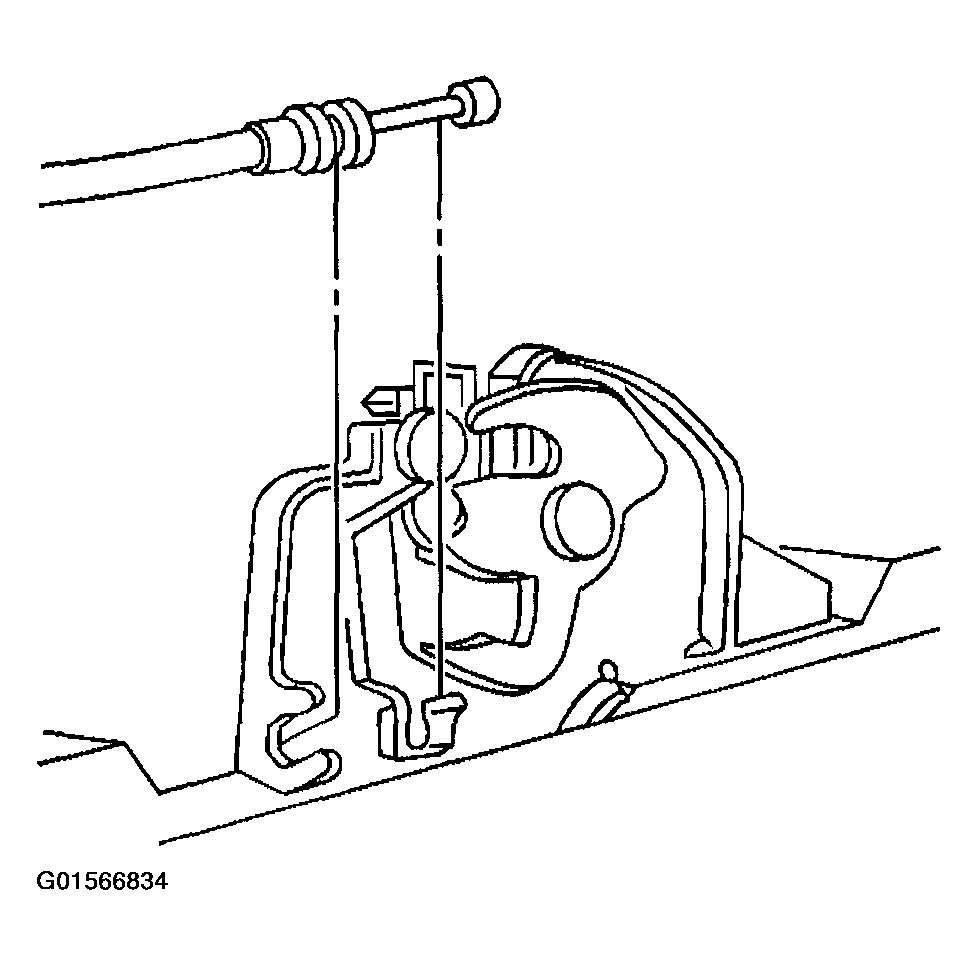

    Fig 4: Connecting Cable To Primary Latch
    G01566834Courtesy of GENERAL MOTORS CORP.
