Removal Procedure

  1. Raise the hood.
  2. Remove the hood insulator push-in retainers by using J 38778.
  3. Remove the insulator from the hood.

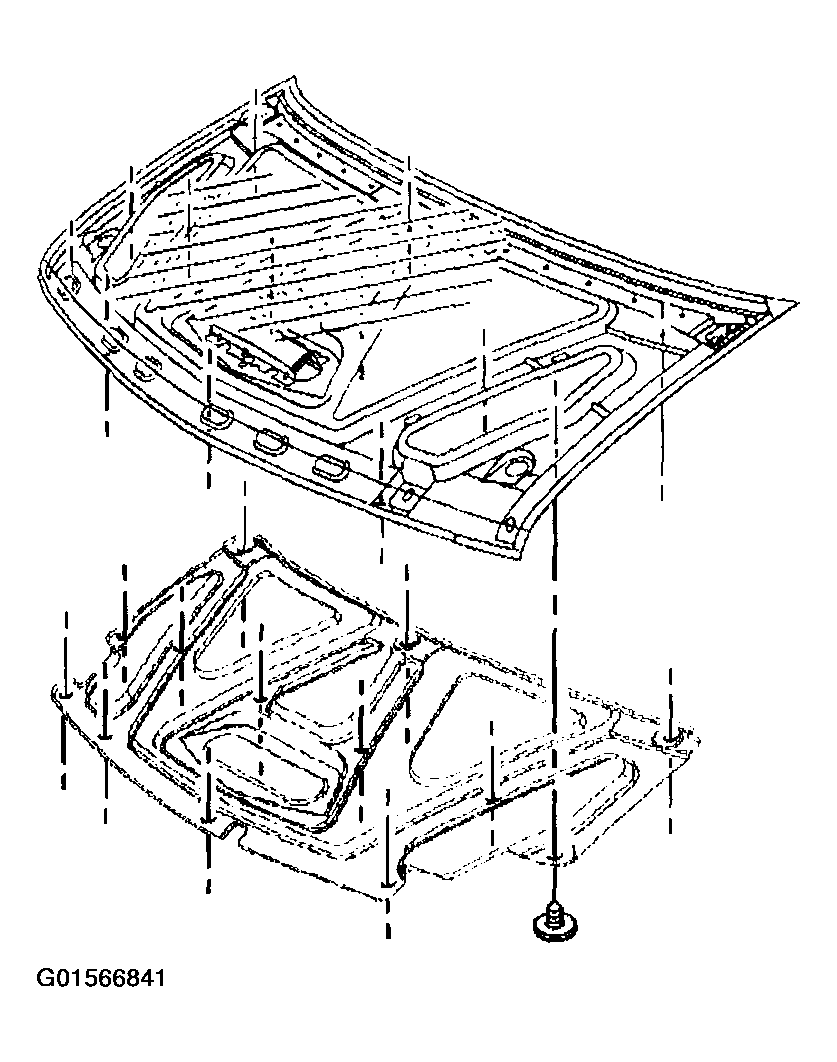

    Fig 1: Removing Insulator From The Hood
    G01566841Courtesy of GENERAL MOTORS CORP.
