Removal Procedure

  1. Measure the height of the hood adjust front bumper before removing in order to aid in adjustment.
  2. Rotate the hood adjust front bumper counterclockwise.

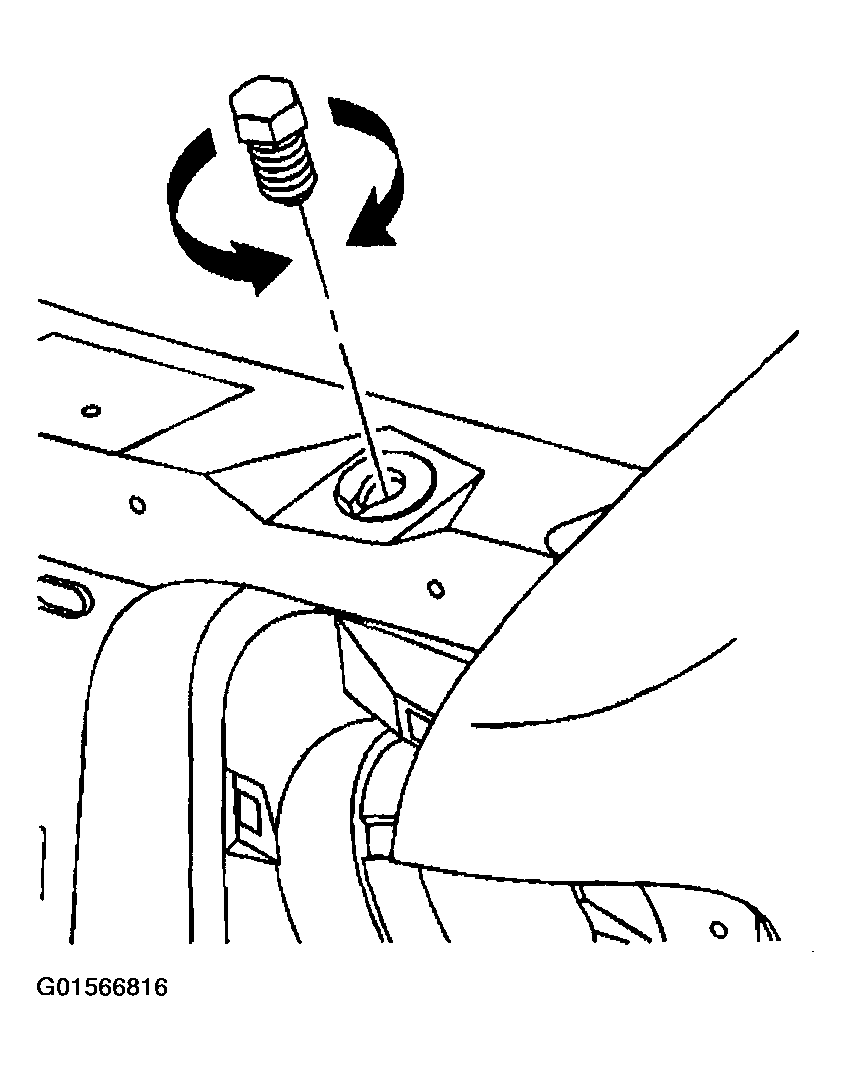

    Fig 1: Removing Hood Adjust Bumper - Front
    G01566816Courtesy of GENERAL MOTORS CORP.
