Installation Procedure

  1. Rotate the hood adjust front bumpers clockwise until the hood adjust front bumper is at the same height as measured before removal.
  2. Check the alignment of the hood panel assembly.

    Ensure the top of the hood is flush with the fenders and parallel to the grille.

  3. Rotate the bumper clockwise or counterclockwise in order to align the hood.

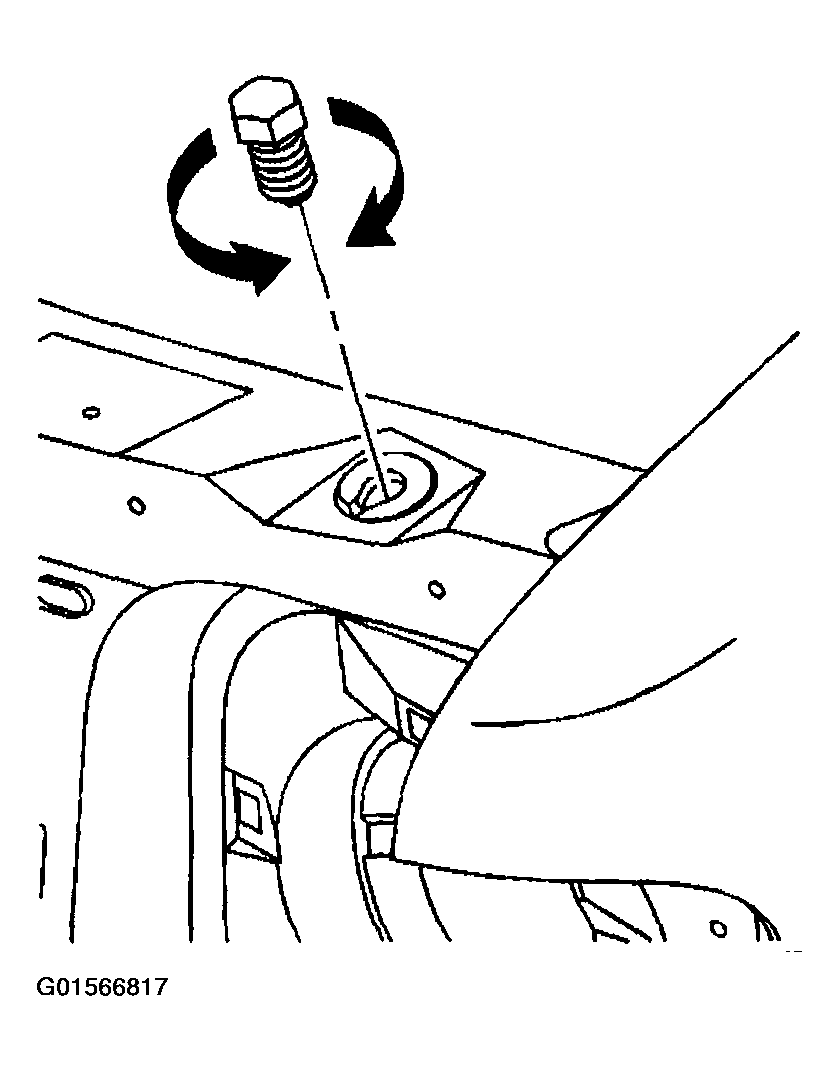

    Fig 1: Rotating Hood Adjust Bumper In Order To Align Hood
    G01566817Courtesy of GENERAL MOTORS CORP.
