Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Unhook the power steering cooler lines (2) from the air baffle.
  3. Remove the push-in retainers (4) on the right and left sides of the air baffle.
  4. Remove the screws (3) that attaches the air baffle to the radiator support.
  5. Pull the air baffle rearward in order to release the air baffle from the radiator support.
  6. Remove the air baffle (1).

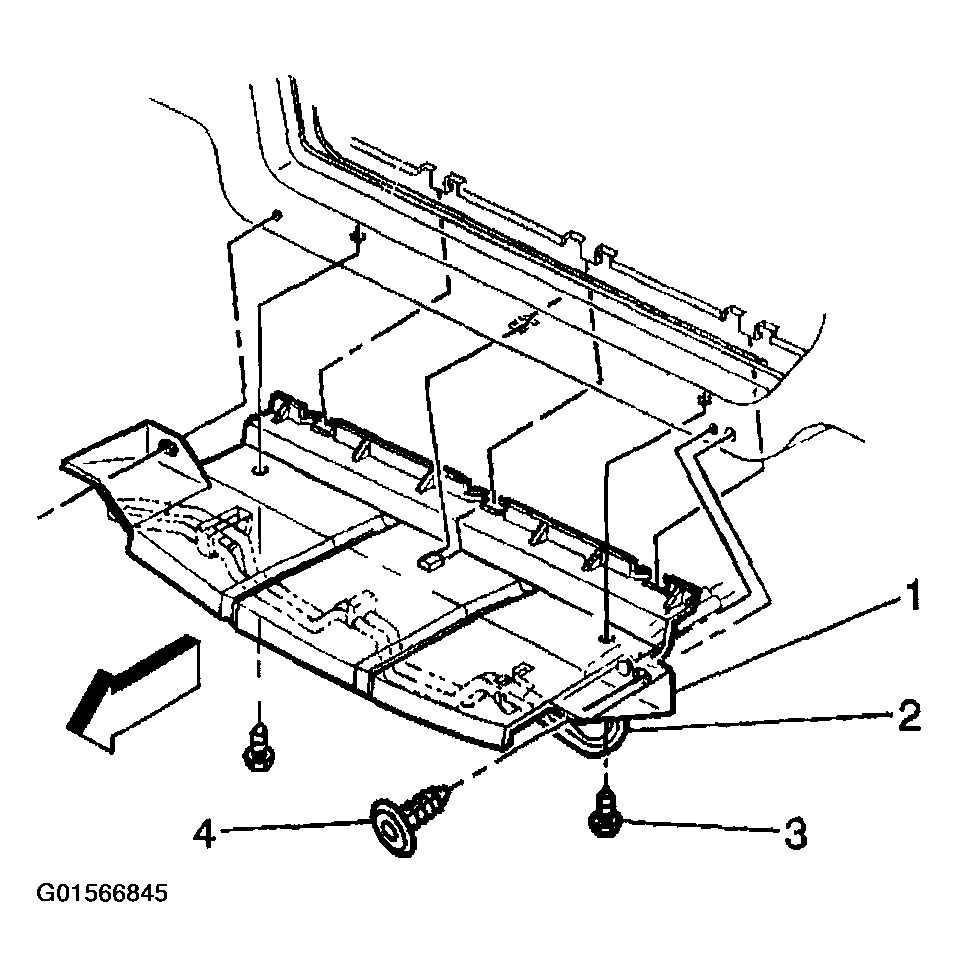

    Fig 1: Removing Air Intake Baffle
    G01566845Courtesy of GENERAL MOTORS CORP.
