Installation Procedure

  1. Position the air baffle (1) into the radiator support.
  2. Align the tabs of the air baffle to the radiator support before installing the screws.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the screws (3) that attach the air baffle to the radiator support.

    Tighten

    Tighten the screws that attaches the air baffle to the radiator support to 2 N.m (18 lb in).

  4. Remove the push clips (4) on the right and left sides of the air baffle.
  5. Hook the power steering cooler lines (2) to the air baffle.
  6. Lower the vehicle.

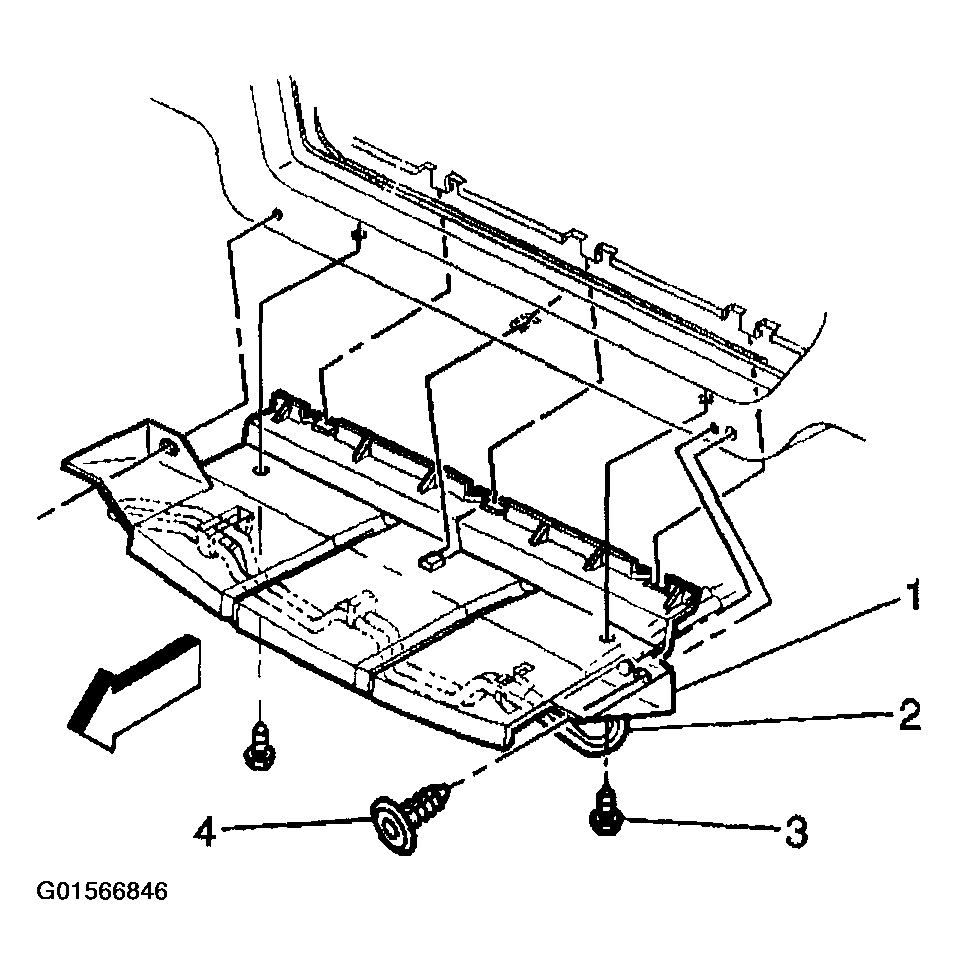

    Fig 1: Installing Air Intake Baffle
    G01566846Courtesy of GENERAL MOTORS CORP.
