Removal Procedure

  1. Disconnect the windshield washer hoses from the windshield wiper arm.
  2. Remove the windshield wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  3. Remove the antenna. Refer to FIXED ANTENNA MAST REPLACEMENT in Entertainment.
  4. Remove the air inlet grille panel to cowl screws.
  5. Remove the air inlet grille panel from the vehicle.

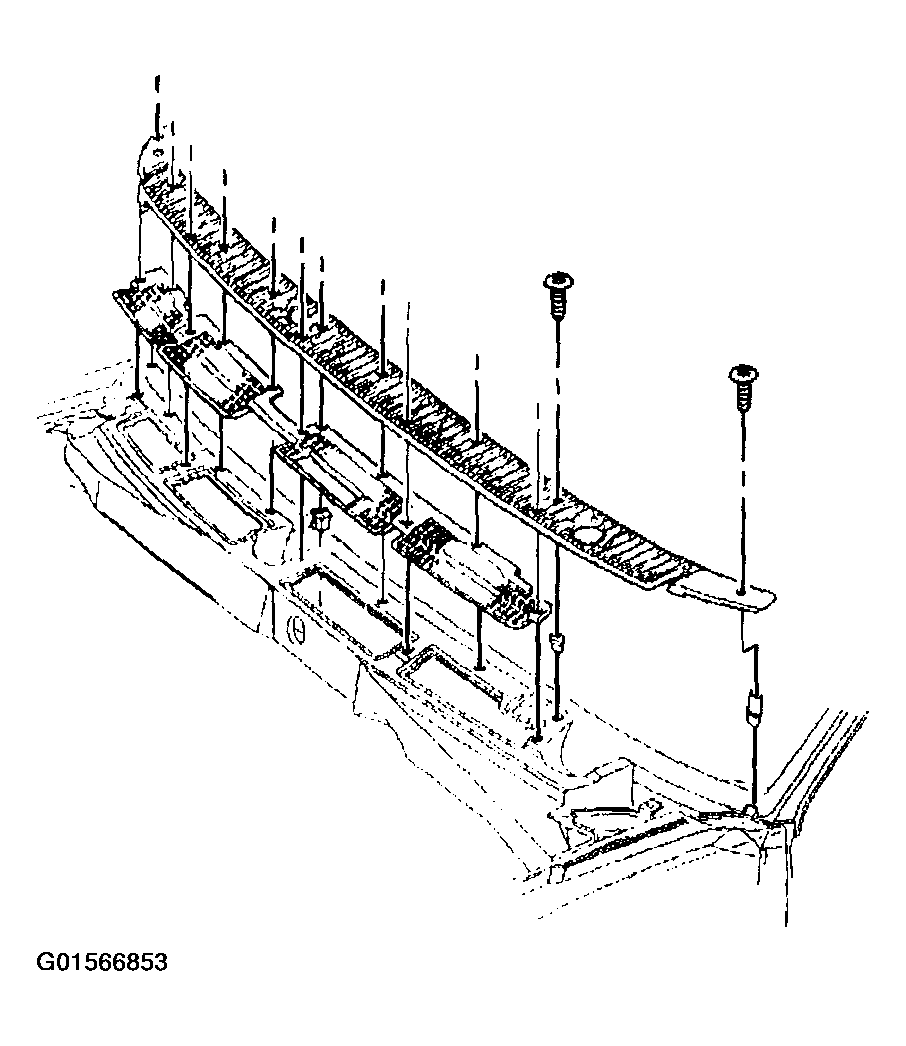

    Fig 1: Removing Air Inlet Grille Panel From Vehicle
    G01566853Courtesy of GENERAL MOTORS CORP.
