Installation Procedure

  1. Install the air inlet grille panel to the vehicle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the air inlet grille panel to cowl screws.

    Tighten

    Tighten the air inlet grille panel to cowl screws 2 N.m (18 lb in).

  3. Install the antenna. Refer to FIXED ANTENNA MAST REPLACEMENT in Entertainment.
  4. Install the windshield wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.

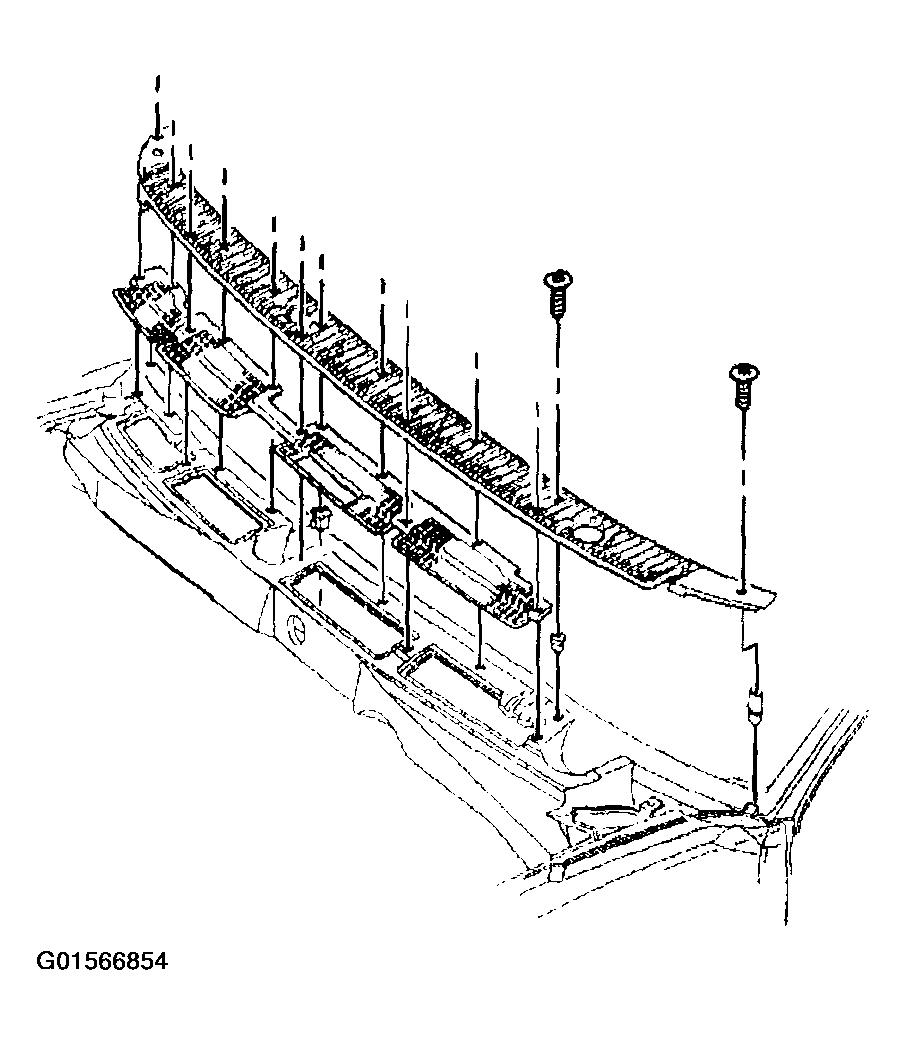

    Fig 1: Installing Air Inlet Grille Panel To Vehicle
    G01566854Courtesy of GENERAL MOTORS CORP.
