Safari Van Cargo, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Theft Deterrent System
>>
Diagnostic Information and Procedures
>>
Scan Tool Data List
Scan Tool Data List
Fig 1: Body Control Module (BCM) Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.

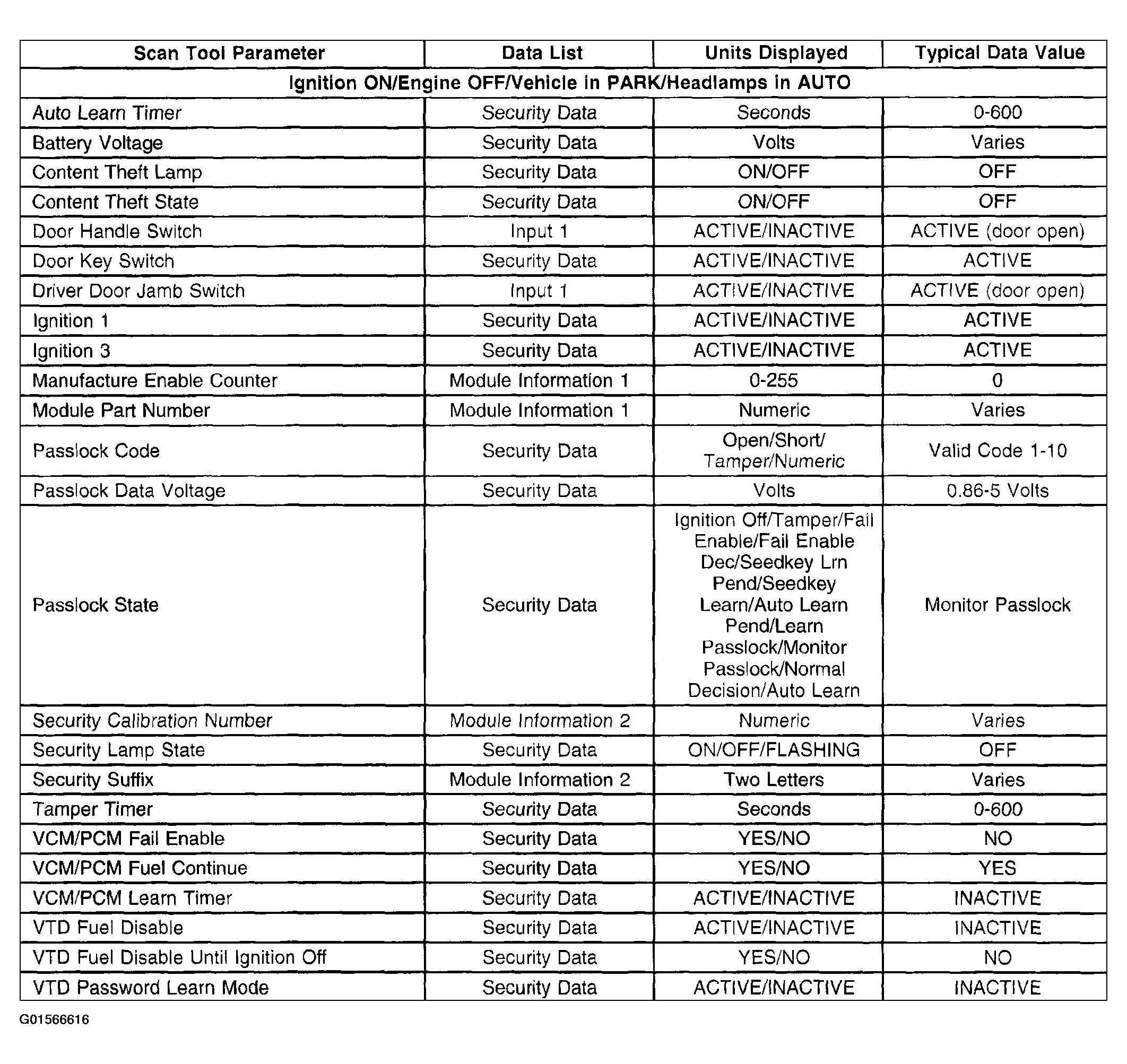

Fig 2: Powertrain Control Module (PCM) Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
