Test Description

The number below refers to the step number on the diagnostic table.

  1. 3. Tests for a magnetic field near the ignition lock cylinder.

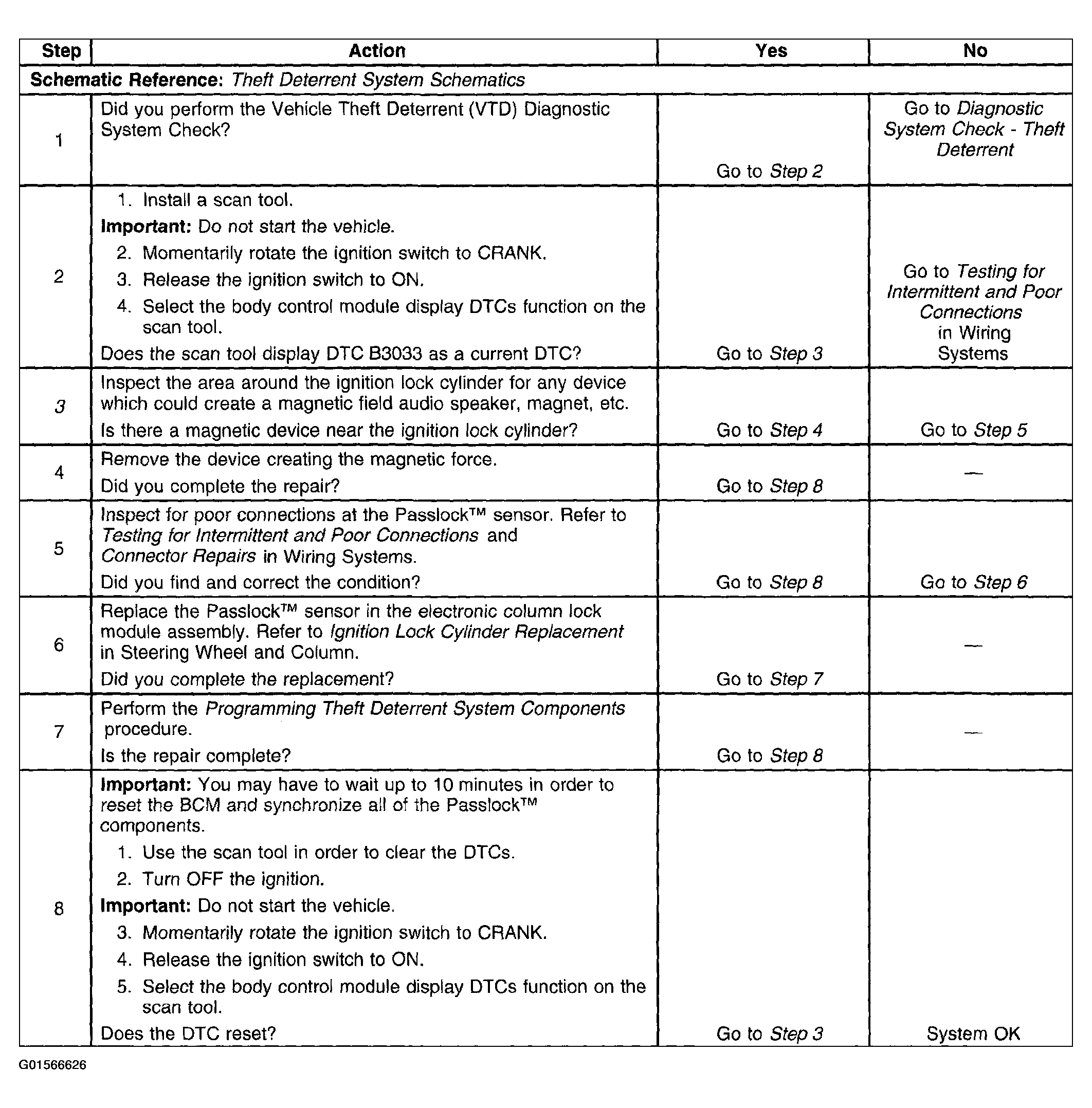

Fig 1: DTC B3033
G01566626Courtesy of GENERAL MOTORS CORP.
