Test Description

The number below refers to the step number on the diagnostic table.

  1. 3. Tests for the proper operation of the 12V reference Security Sensor Power circuit, sensor ground circuit, and Passlock™ sensor signal (data) circuit. Troubleshoot the appropriate DTC prior to diagnosing DTC B3031.

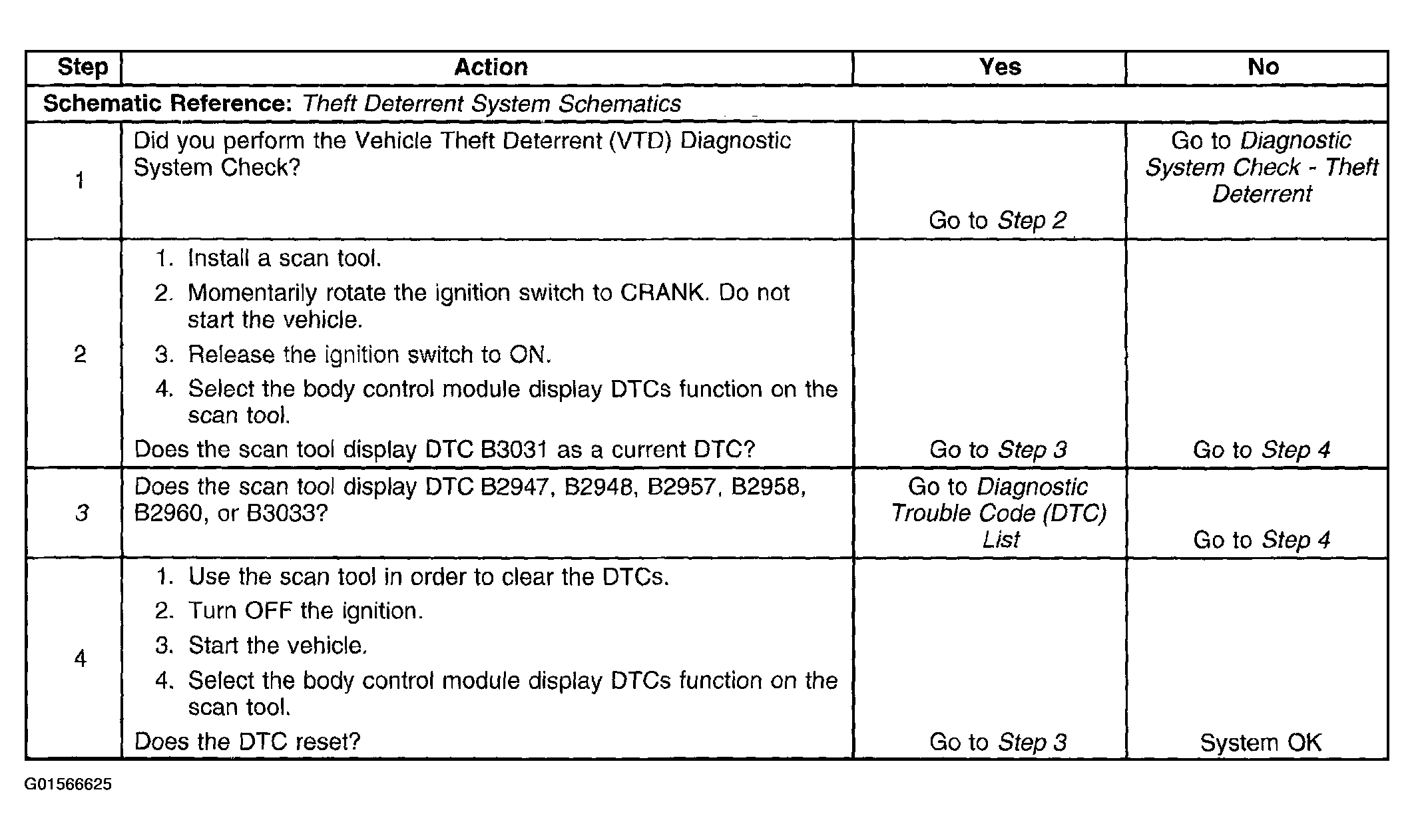

Fig 1: DTC B3031
G01566625Courtesy of GENERAL MOTORS CORP.
