Test Description

The number below refers to the step number on the diagnostic table.

  1. 6. Tests for the proper operation of the circuit in the normal voltage range.

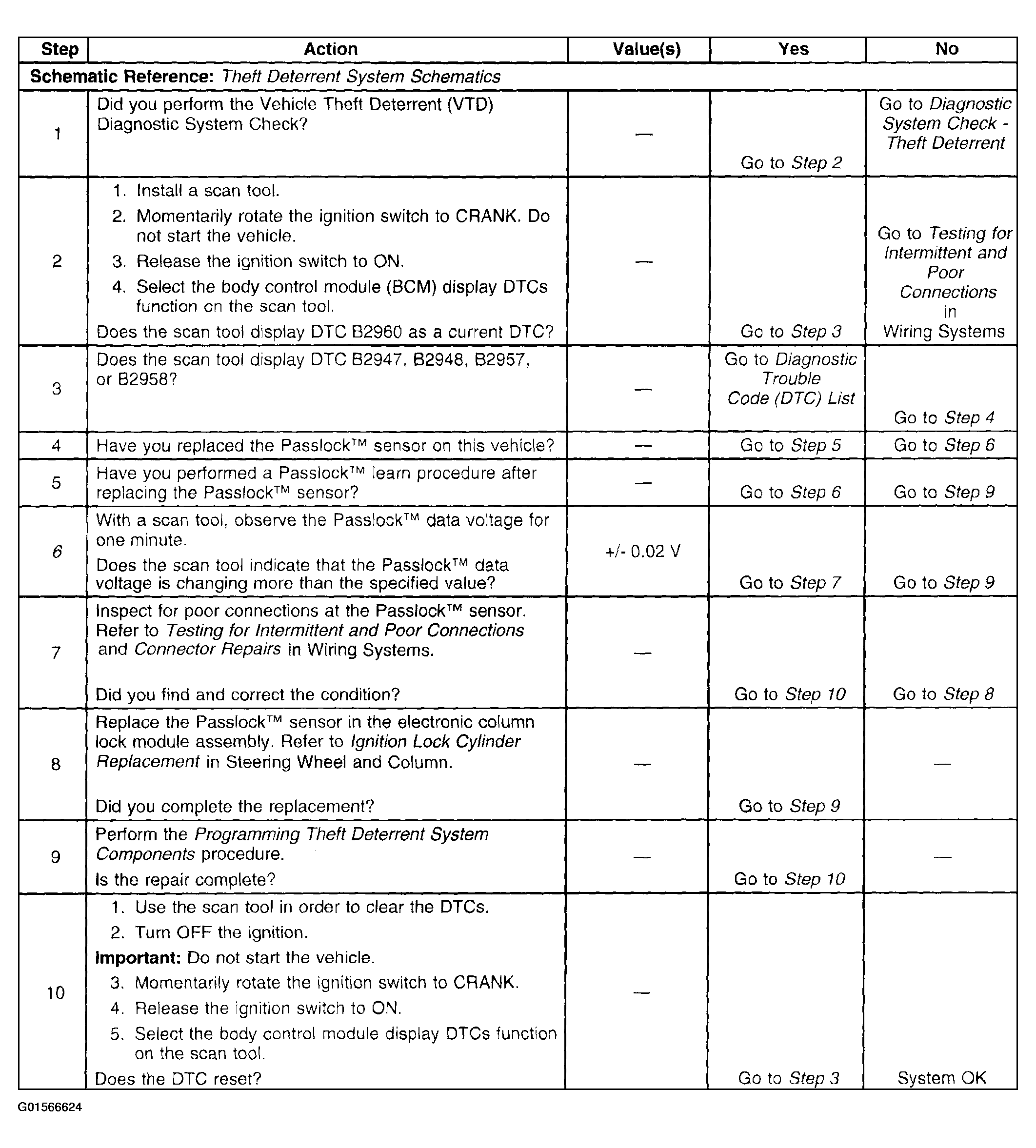

Fig 1: DTC B2960
G01566624Courtesy of GENERAL MOTORS CORP.
