Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Verifies that DTC B2947 is a current DTC.
  2. 3. Tests for a short to ground in the Passlock™ sensor or the pigtail harness.

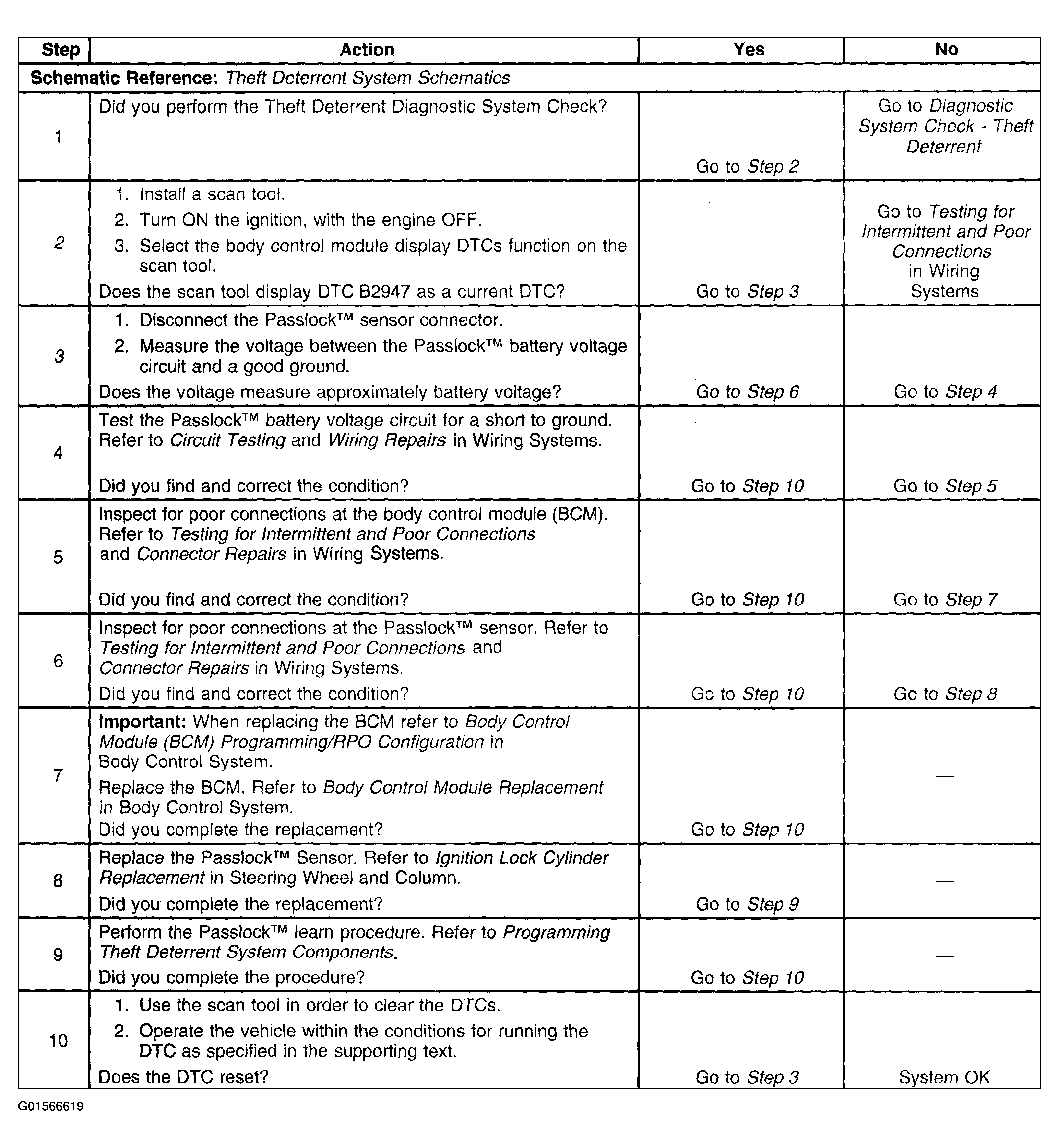

Fig 1: DTC B2947
G01566619Courtesy of GENERAL MOTORS CORP.
