Diagnostic Test

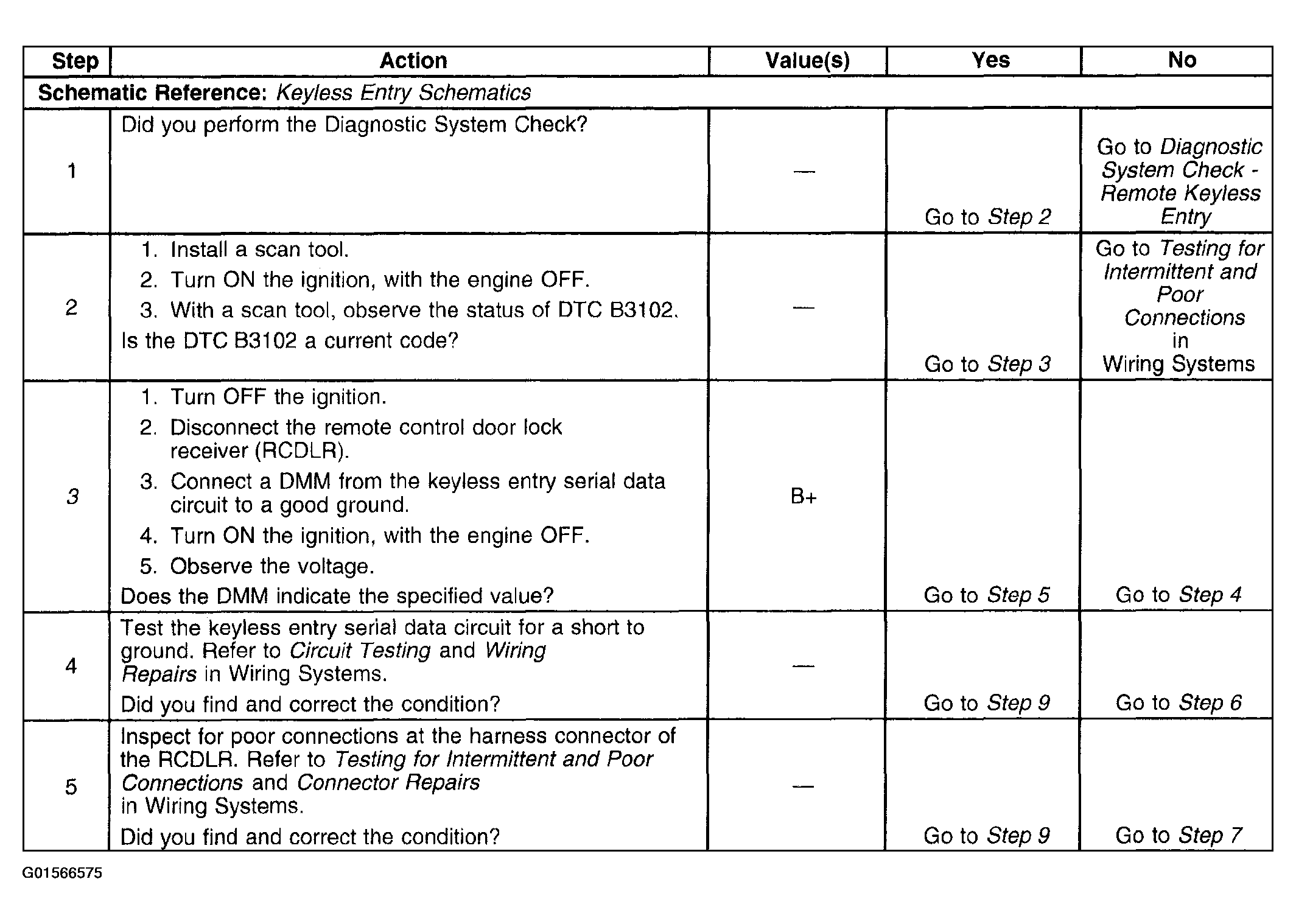

Fig 1: DTC B3102 Diagnostic Table (1 Of 2)

G01566575

Courtesy of GENERAL MOTORS CORP.

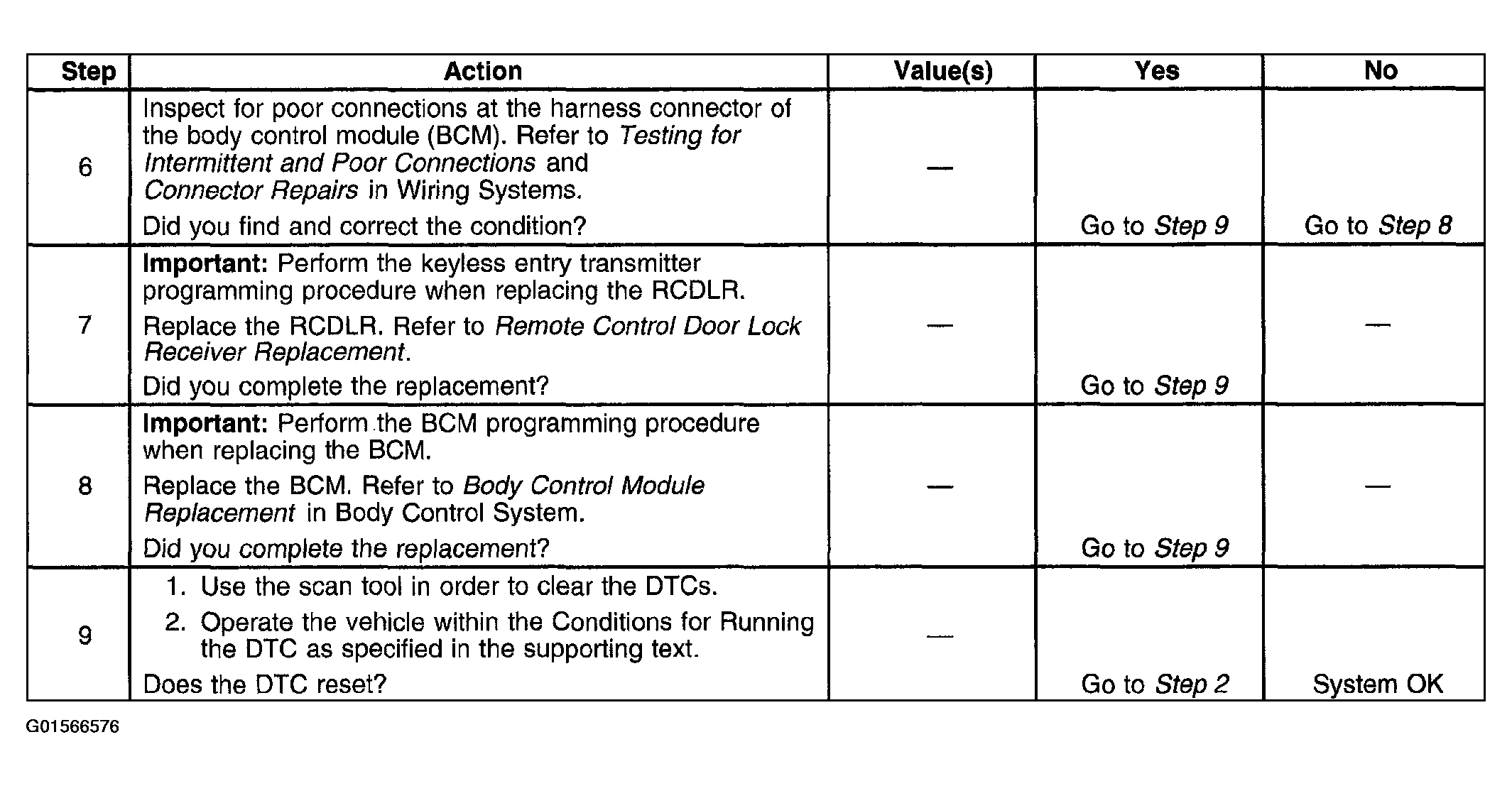

Fig 2: DTC B3102 Diagnostic Table (2 Of 2)

G01566576

Courtesy of GENERAL MOTORS CORP.
