Wiper/Washer System Schematics

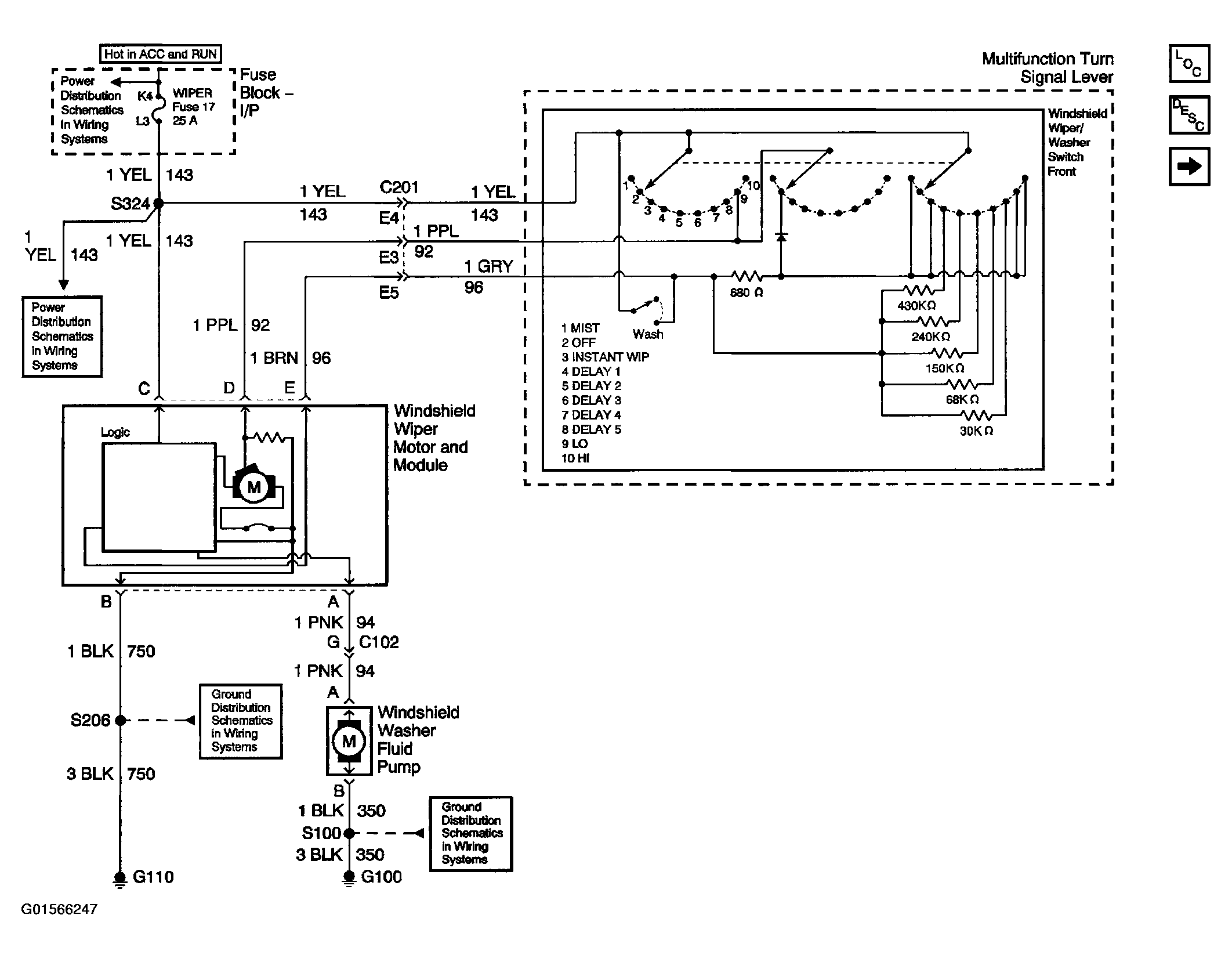

Fig 1: Windshield Wipers (Front)

G01566247

Courtesy of GENERAL MOTORS CORP.

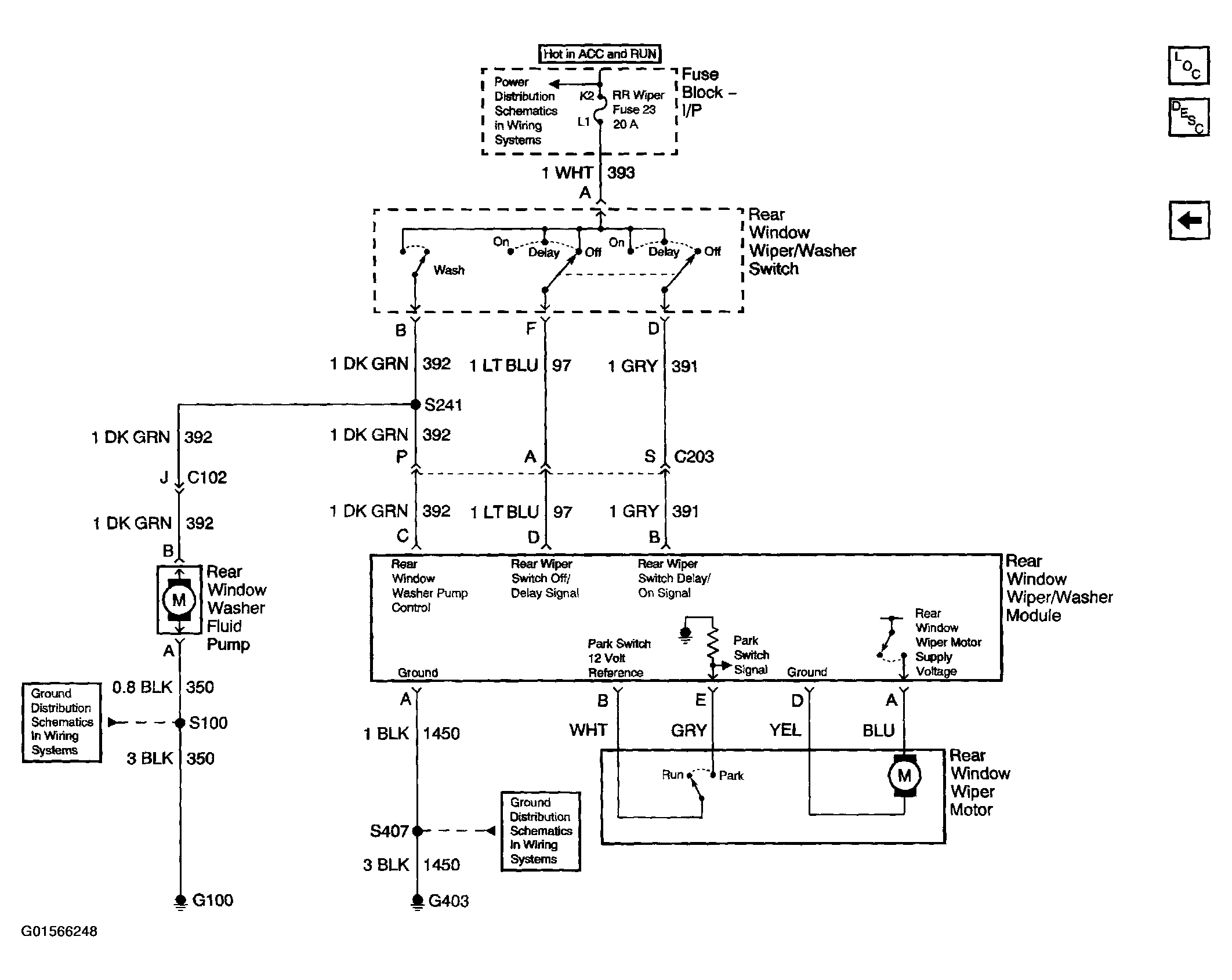

Fig 2: Rear Window Wiper

G01566248

Courtesy of GENERAL MOTORS CORP.
