Removal Procedure

  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  3. Disconnect the transmission drive link from the wiper motor crank arm using the J 39232  .

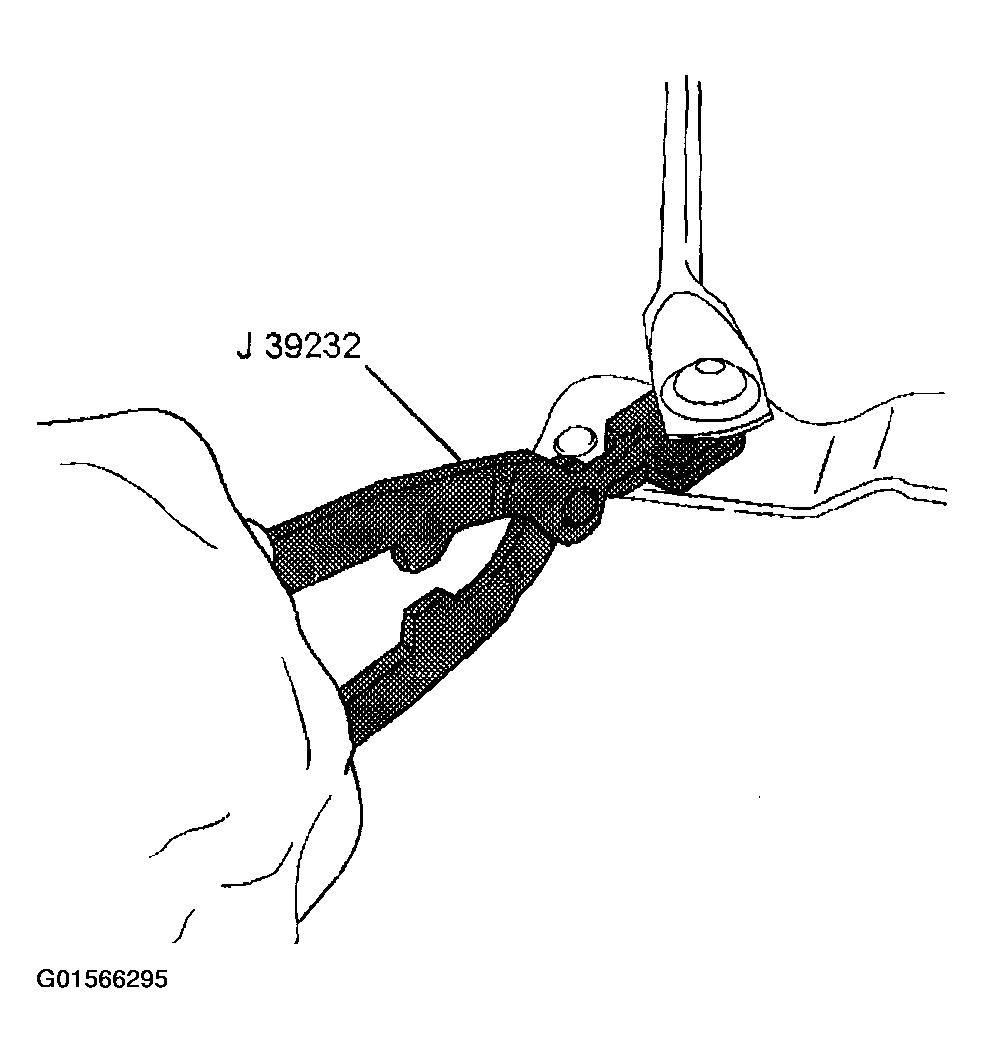

    Fig 1: Disconnecting Transmission Drive Link From The Wiper Motor Crank Arm
    G01566295Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiper motor electrical connector.
  5. Remove the three bolts
  6. Remove the wiper motor from the vehicle.

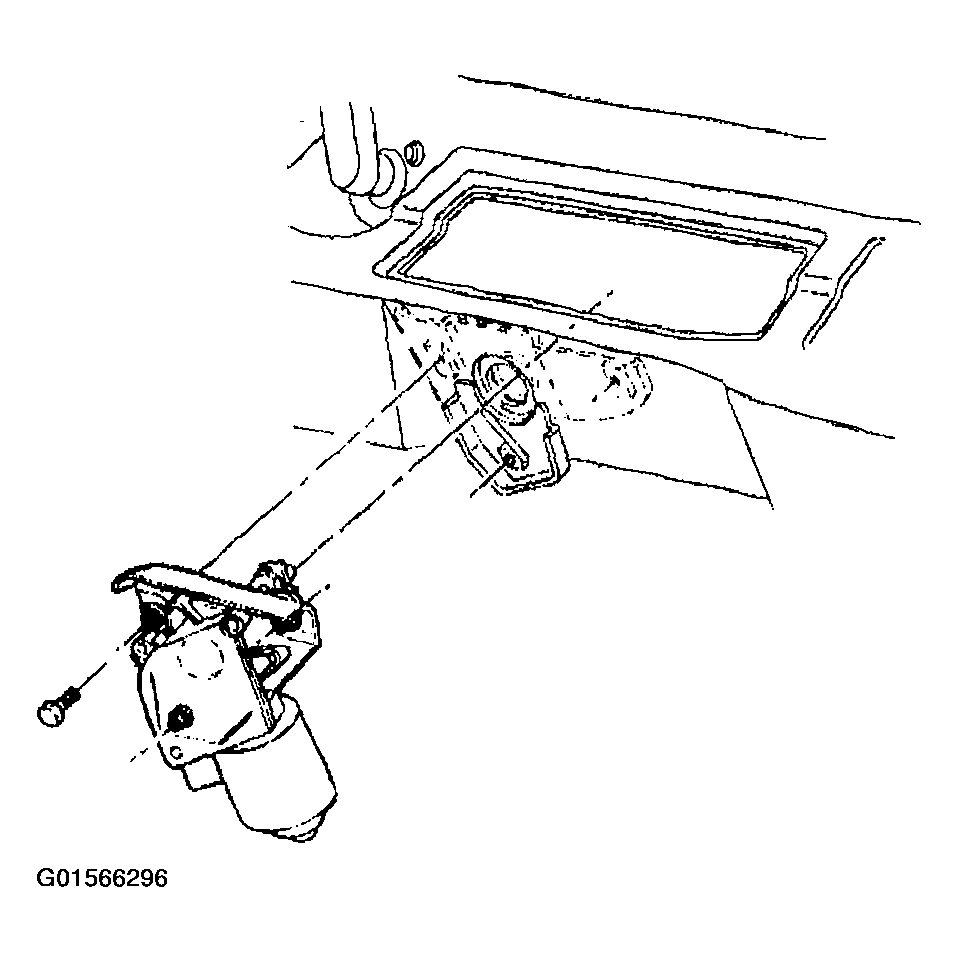

    Fig 2: Removing Wiper Motor
    G01566296Courtesy of GENERAL MOTORS CORP.
