Installation Procedure

  1. Install the wiper motor on the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 3 bolts.

    Tighten

    Tighten the 3 bolts to 7.0 N.m (62 lb in).

  3. Connect the wiper motor electrical connector.

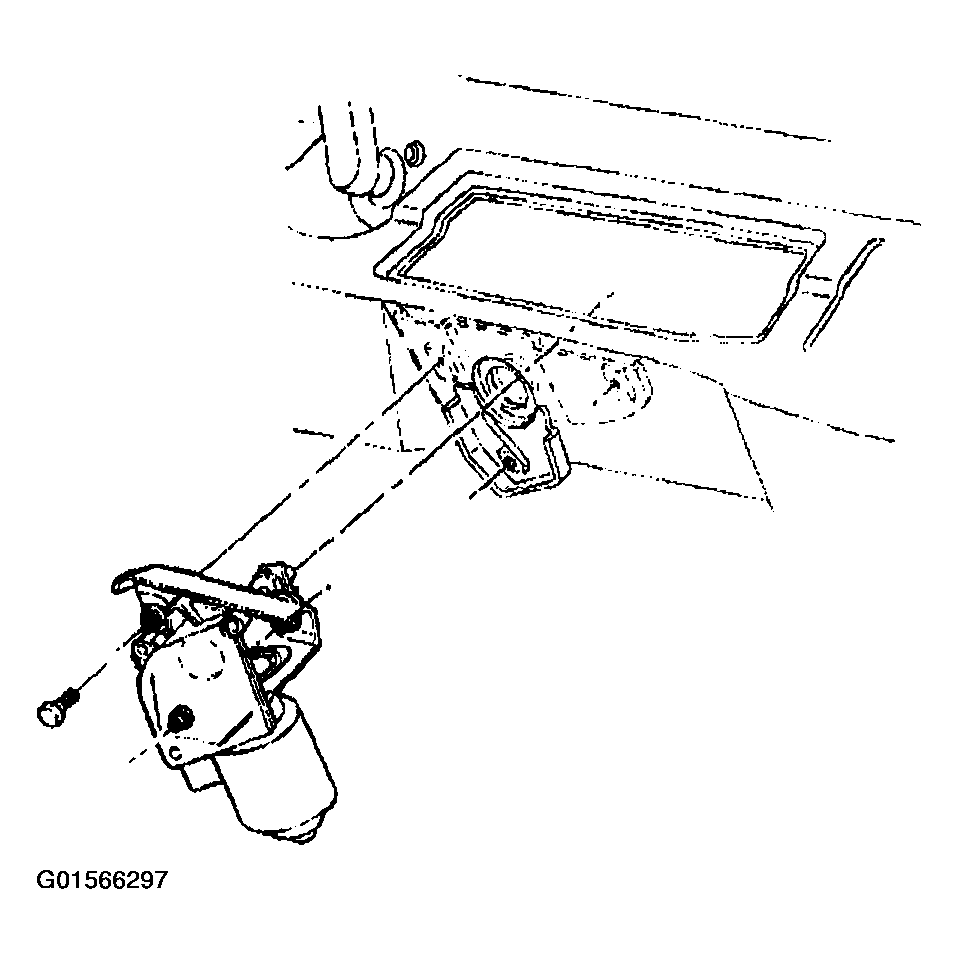

    Fig 1: Installing Wiper Motor
    G01566297Courtesy of GENERAL MOTORS CORP.

    Important:  Assemble the wiper transmission to the crank arm past the second detent so that the seal is compressed to a maximum height of 25.5 mm (1.0 in).

    Lubricate the inside of the socket with a lithium-based grease (GM P/N 1050109, 1052196 or equivalent).

  4. Connect the transmission drive link to the crank arm using the J 39529.
  5. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  6. Install the wiper arms. Refer to WIPER ARM REPLACEMENT .

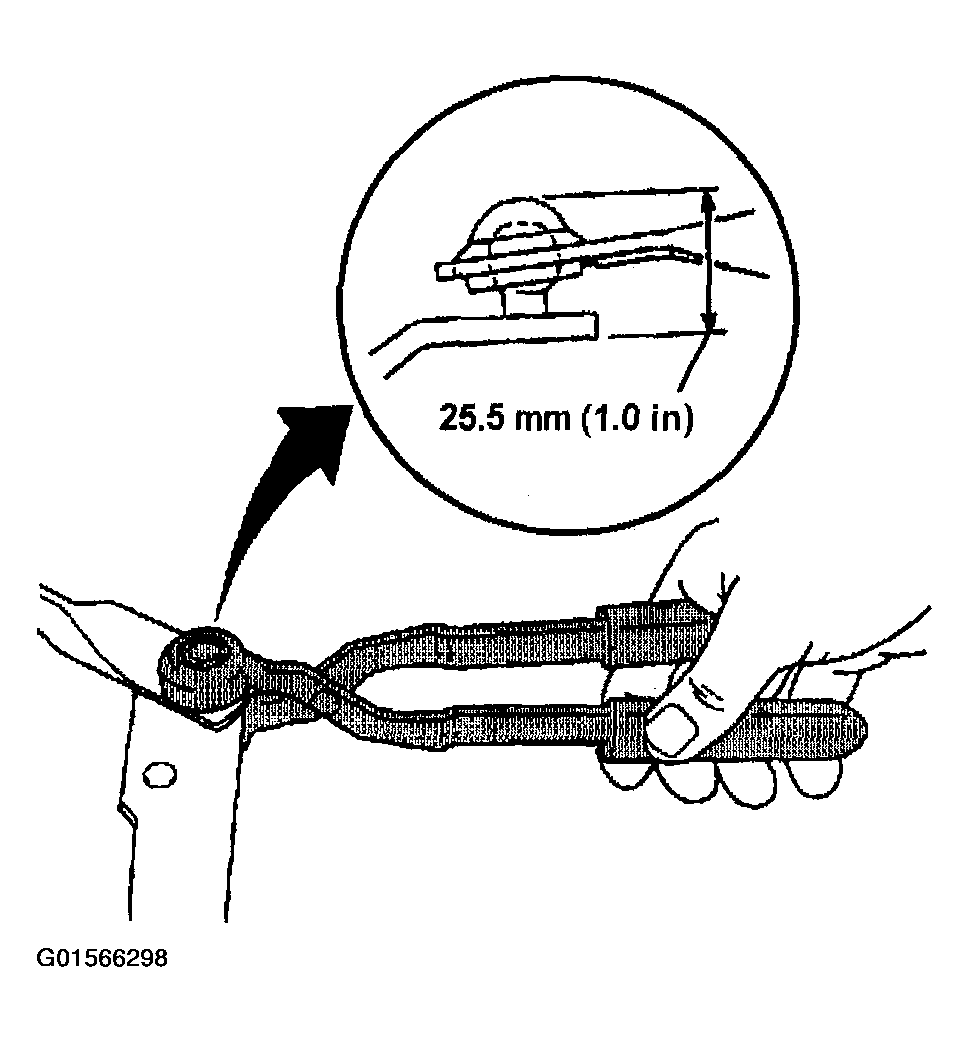

    Fig 2: Connecting Transmission Drive Link To The Crank Arm
    G01566298Courtesy of GENERAL MOTORS CORP.
