Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the wiper motor to the liftgate with the 2 bolts.

    Tighten

    Tighten the bolts to 7.0 N.m (62 lb in).

  2. Install the seal, the spacer, and the nut.

    Tighten

    Tighten the nut to 6.0 N.m (53 lb in).

  3. Install the wiper arm and blade. Refer to WIPER ARM REPLACEMENT - REAR .
  4. Connect the wiper motor electrical connector.
  5. Install the liftgate garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE in Body Rear End.

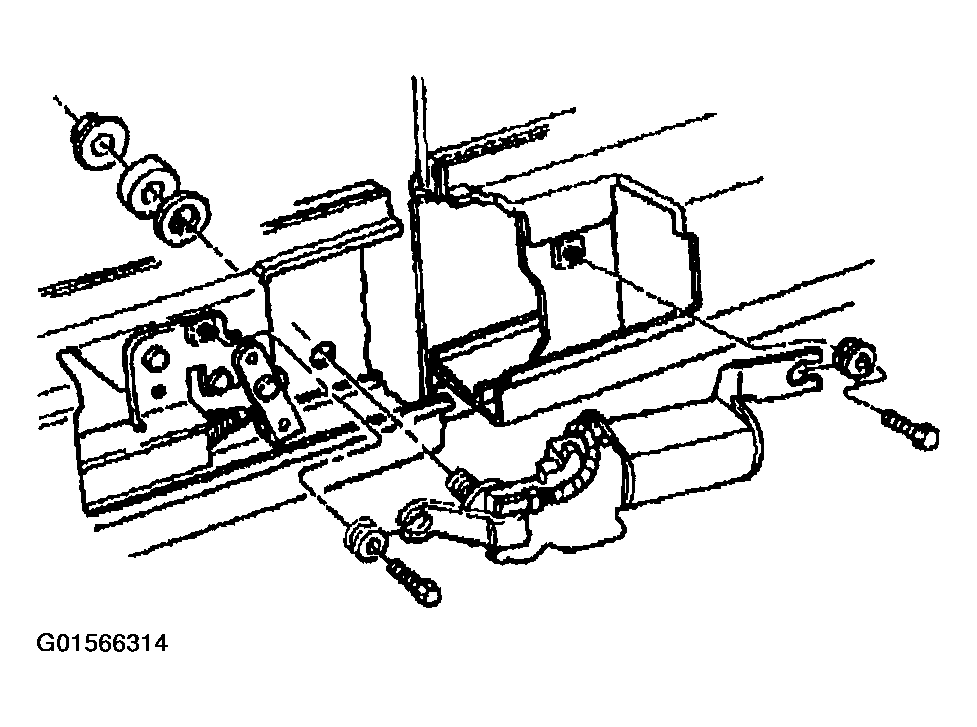

    Fig 1: Installing Wiper Motor To The Liftgate
    G01566314Courtesy of GENERAL MOTORS CORP.
