Removal Procedure

  1. Remove the liftgate garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE .
  2. Disconnect the two electrical connectors from the controller module assembly.
  3. Drill the heads from the rivets with an appropriate drill bit.
  4. Remove two rivets and the controller assembly from the liftgate.

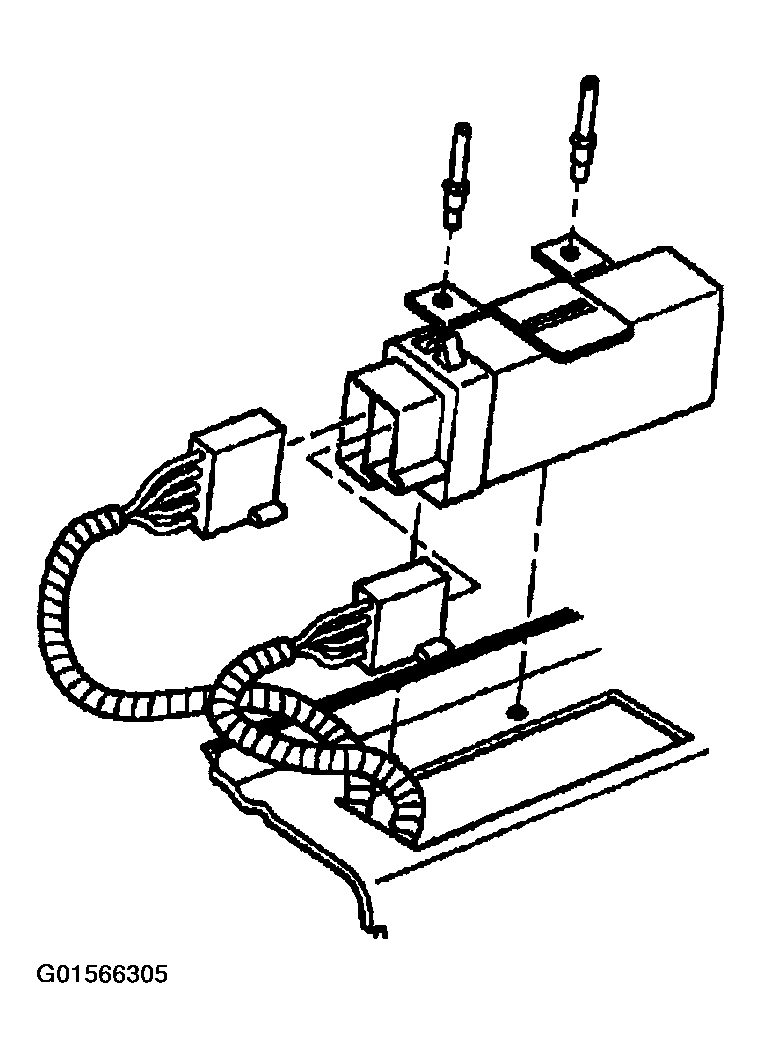

    Fig 1: Removing Wiper Motor Module (Rear)
    G01566305Courtesy of GENERAL MOTORS CORP.
