Installation Procedure

  1. Install the controller module assembly onto the liftgate.
  2. Install two new rivets with a hand-held rivet gun.
  3. Connect the two electrical connectors to the controller assembly.
  4. Install the liftgate garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE .

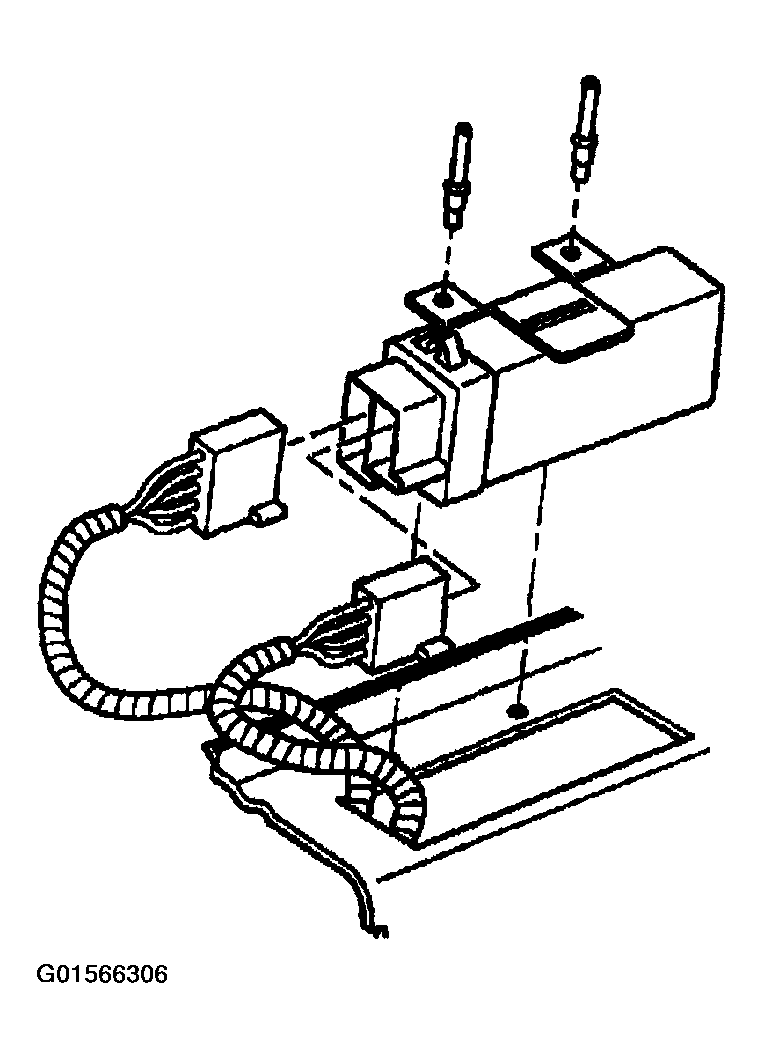

    Fig 1: Installing Wiper Motor Module (Rear)
    G01566306Courtesy of GENERAL MOTORS CORP.
