Removal Procedure

  1. Remove the wiper motor electrical connector.
  2. Remove the cover screws.
  3. Remove the cover.
  4. Remove the circuit board and terminal module by lifting up on the terminal.

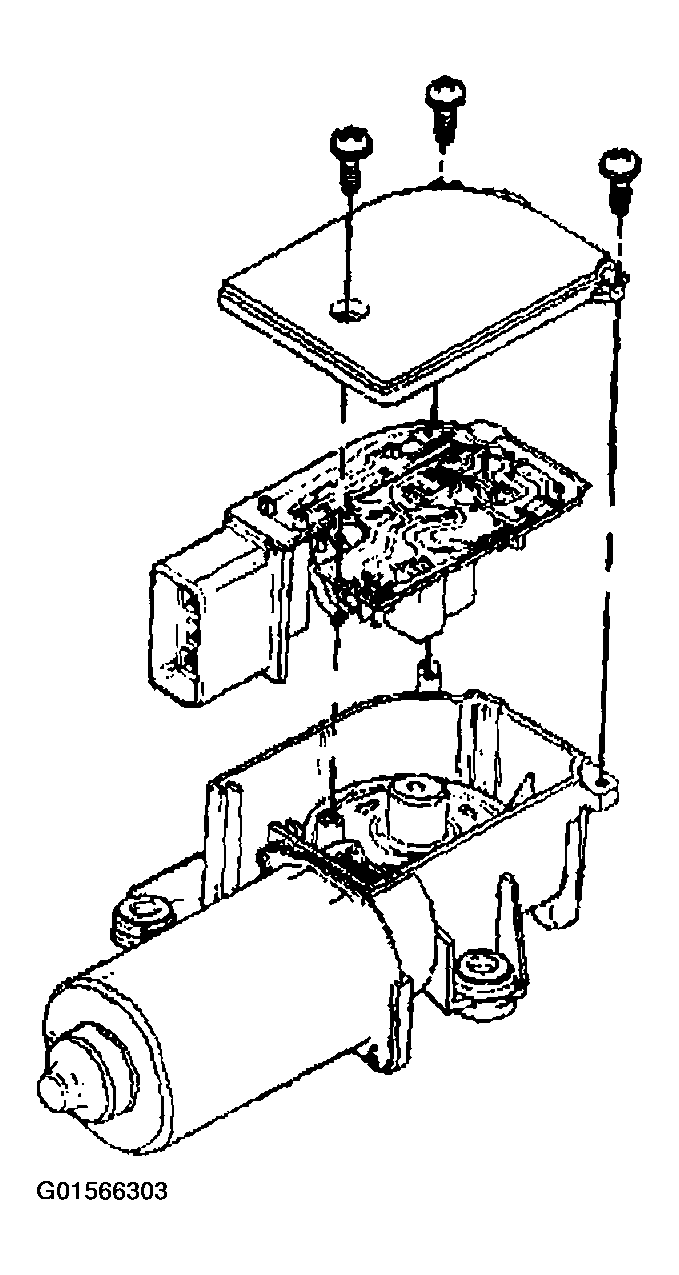

    Fig 1: Removing Circuit Board And Terminal Module (Front)
    G01566303Courtesy of GENERAL MOTORS CORP.
