Installation Procedure

  1. Install the circuit board and terminal module.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cover and 3 screws.

    Tighten

    Tighten the screws to 2.6 N.m (23 lb in).

  3. Install the wiper motor electrical connector.

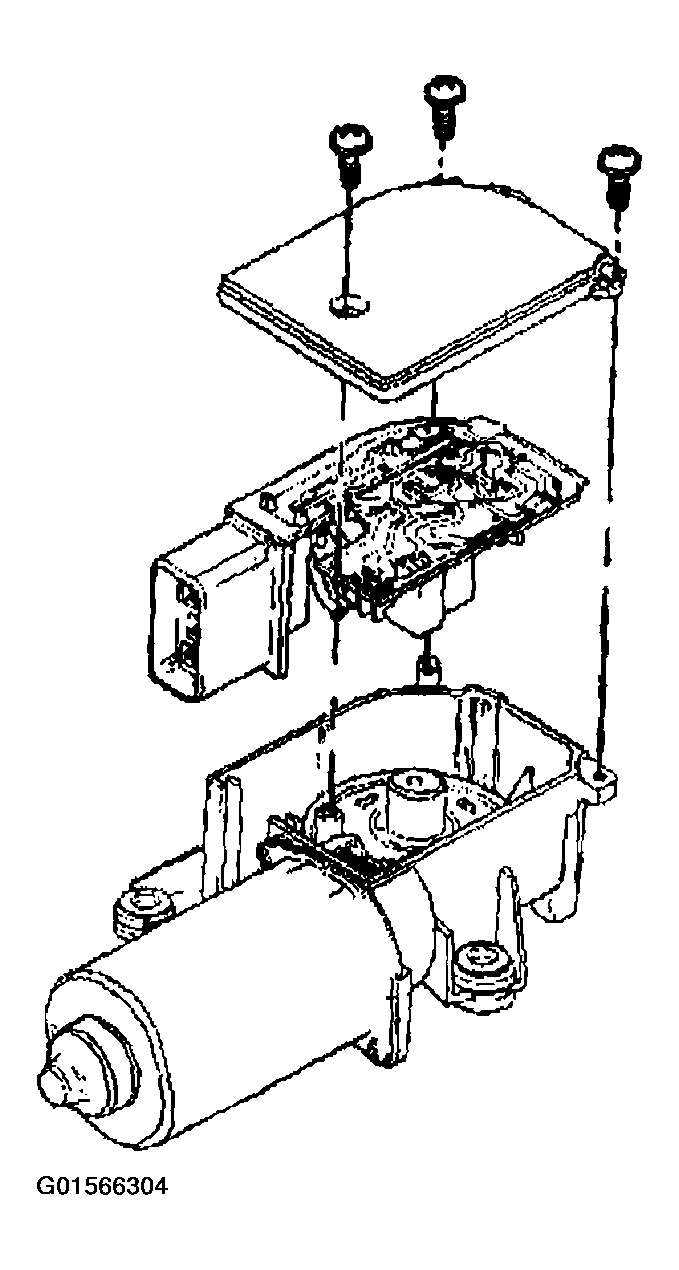

    Fig 1: Installing Circuit Board And Terminal Module (Front)
    G01566304Courtesy of GENERAL MOTORS CORP.
