Removal Procedure

  1. Remove the washer hose from the wiper arm.

    Important:  Before removing one or both of the arm and blade assemblies, use a suitable marker on the windshield to indicate the proper part position and to aid in reinstallation.

  2. Lift the wiper arm assembly from the windshield, then pull the retaining latch.
  3. Remove the arm assembly from the transmission drive shaft.

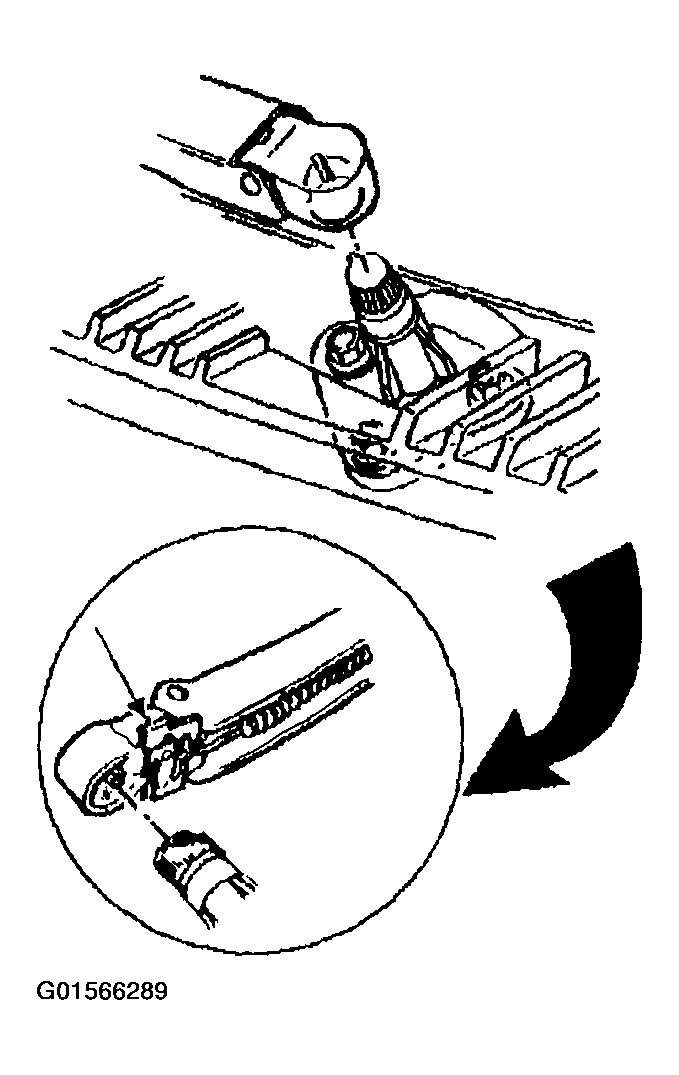

    Fig 1: Removing Wiper Arm Assembly
    G01566289Courtesy of GENERAL MOTORS CORP.
