Installation Procedure

  1. Position the wiper arm assembly on the drive shaft and press in the retaining latch so that the wiper blade aligns with the mark made before the removal.
  2. Install the washer hose.

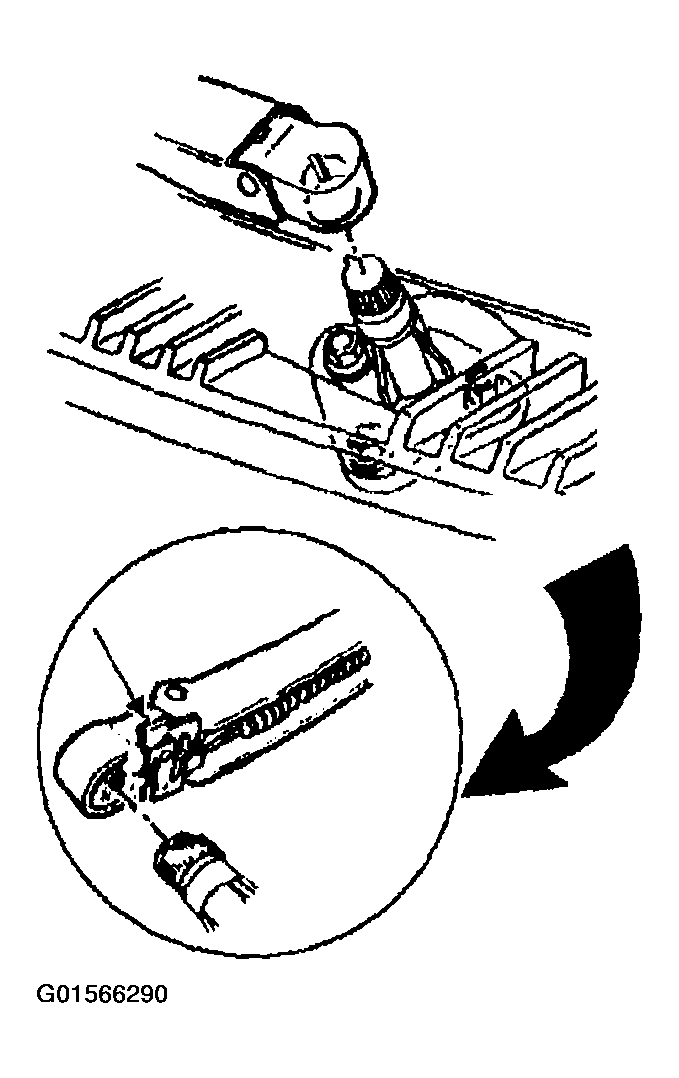

    Fig 1: Installing Wiper Arm Assembly
    G01566290Courtesy of GENERAL MOTORS CORP.
