Installation Procedure

  1. Position the wiper arm onto the wiper motor drive shaft so that the tip of the blade aligns with the mark made at removal.
  2. Install the wiper arm onto the drive shaft.
  3. Press in the retaining clip.
  4. Connect the washer hose onto the washer harness connector.
  5. Insert the hose into the liftgate grommet.
  6. Operate the rear wiper and inspect for proper operation.

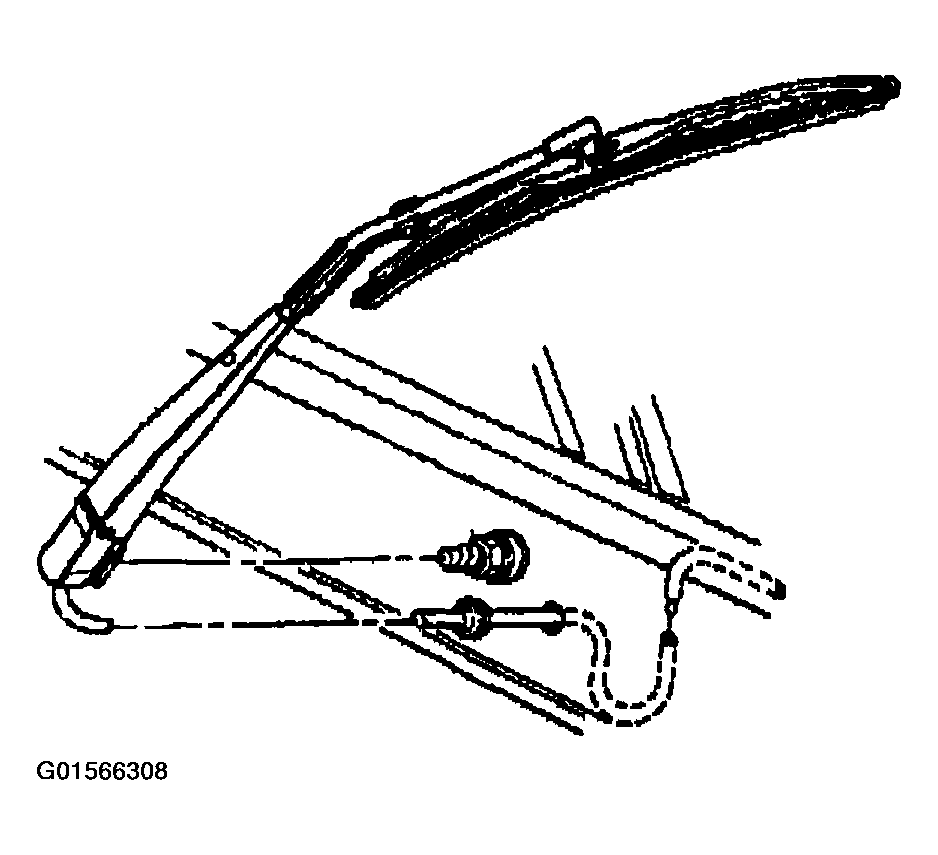

    Fig 1: Installing Wiper Arm (Rear)
    G01566308Courtesy of GENERAL MOTORS CORP.
